Heavy Duty Male Stud Coupling Metric Parallel - Equipped B3 Ring

Name: Heavy Duty Male Stud Coupling Metric Parallel - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-f348e8
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f348e8

Premium Heavy Duty Male Stud Coupling - Carbon Steel, DIN 2353 Standards, 630 bar Pressure

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

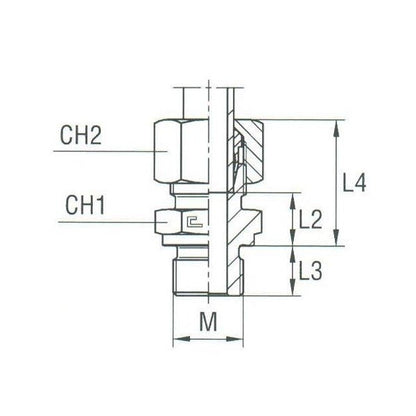

The Heavy Duty Male Stud Coupling Metric Parallel with Equipped B3 Ring is crafted from Carbon Steel meeting DIN 2353 standards. Featuring a tube diameter of 10.0mm and an M-thread size of 16x1.5, this coupling ensures a nominal operating pressure of 630 bar. With precise dimensions including L2: 15mm, L3: 12.0mm, L4: 31mm, CH1: 22mm, and CH2: 22mm, it is ideal for industrial applications requiring reliability and robustness.

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

22 mm

Specifications L2

15 mm

Specifications L3

12.0 mm

Specifications L4

31 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm
