Heavy Duty Male Stud Coupling Metric Parallel - Equipped B4 Ring
Heavy Duty Male Stud Coupling Metric Parallel - Equipped B4 Ring
SKU:FIT-456cef
High-performance Male Stud Coupling Metric Parallel with Carbon Steel construction and DIN 2353 compliance. Ideal for heavy-duty applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling Metric Parallel - Equipped B4 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling Metric Parallel - Equipped B4 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Coupling Metric Parallel with Equipped B4 Ring is expertly crafted from Carbon Steel, ensuring durability and reliability in high-pressure environments. With a Tube Diameter of 38.0 mm and a nominal operating pressure of 315 bar, this fitting excels in demanding applications. Compliant with DIN 2353 standards, this coupling guarantees precision and performance, making it ideal for industrial and institutional settings.

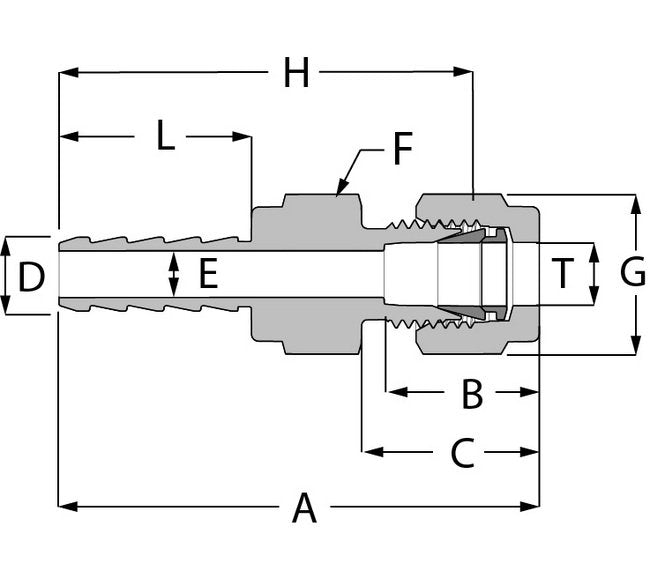

Product Specifications
Specifications Ch1
55 mm
Specifications Ch2
60 mm
Specifications L2
26.0 mm
Specifications L3
22.0 mm
Specifications L4
57 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
Category 6
Male Stud Coupling Thread Metric Parallel
