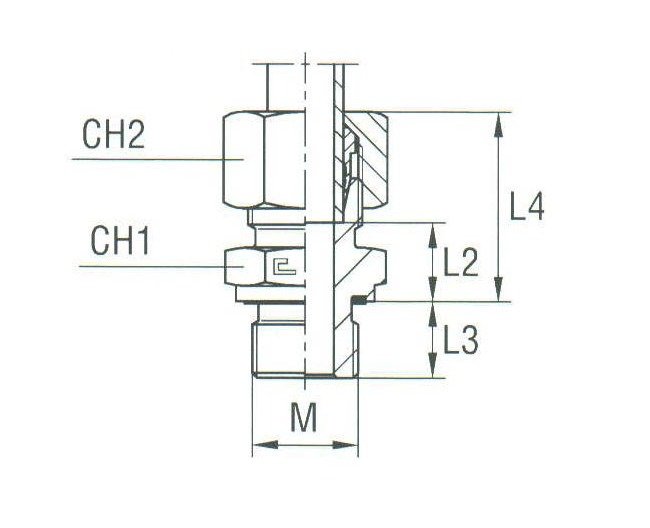

The Heavy Duty Male Stud Coupling with Elastomer Seal is a robust fitting designed for high-pressure applications, made of Carbon Steel to ensure durability. With a Tube Diameter of 25.0 mm and a Nominal Operating Pressure of 400 bar, this coupling offers secure and reliable connections. Meeting DIN 2353 standards, it features precise dimensions including L2: 23.0 mm, L3: 16.0 mm, and L4: 47 mm for seamless integration into hydraulic systems. The CH1 and CH2 dimensions of 41 mm and 46 mm respectively provide versatility in installation.

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

46 mm

Specifications L2

23.0 mm

Specifications L3

16.0 mm

Specifications L4

47 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

27x2

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

25.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
