Heavy Duty Male Stud Coupling Thread BSP Parallel with Equipped B3 Ring
Heavy Duty Male Stud Coupling Thread BSP Parallel with Equipped B3 Ring
SKU:FIT-33eae8
Heavy Duty Male Stud Coupling for High-Pressure Applications, Stainless Steel, DIN 2353 Compliant
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling Thread BSP Parallel with Equipped B3 Ring
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling Thread BSP Parallel with Equipped B3 Ring
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

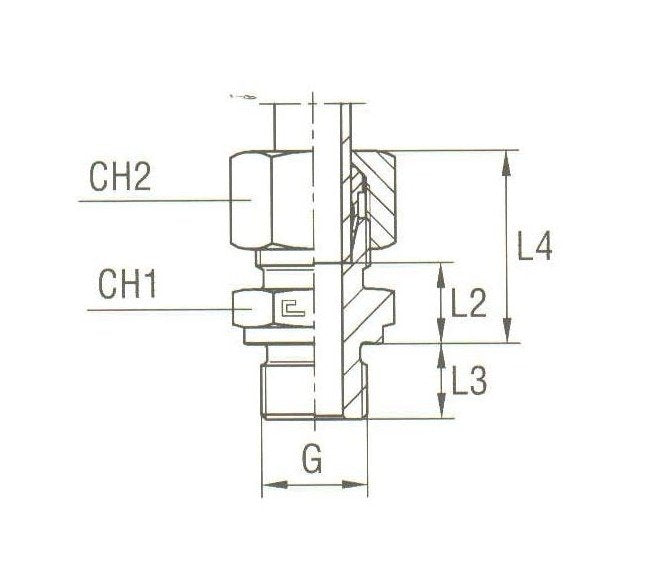

The Heavy Duty Male Stud Coupling Thread BSP Parallel with Equipped B3 Ring is a premium stainless steel fitting designed for critical applications requiring high pressure resistance. With a nominal operating pressure of 630 bar, this fitting ensures reliable performance under demanding conditions. Featuring a tube diameter of 8.0mm and G-Thread Size of 3/8, it meets DIN 2353 standards for quality and durability. The precision engineering of this fitting, with dimensions L2: 15.5mm, L3: 12.0mm, L4: 30.5mm, CH1: 22mm, CH2: 19.0mm, makes it ideal for industrial and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
3/8
Specifications L2
15.5 mm
Specifications L3
12.0 mm
Specifications L4
30.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
