Heavy Duty Male Stud Coupling UNF/UN-2A with O-Ring - Carbon Steel
Heavy Duty Male Stud Coupling UNF/UN-2A with O-Ring - Carbon Steel
SKU:FIT-484ff3
Durable male stud coupling for high-pressure applications, DIN 2353 compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling UNF/UN-2A with O-Ring - Carbon Steel
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling UNF/UN-2A with O-Ring - Carbon Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

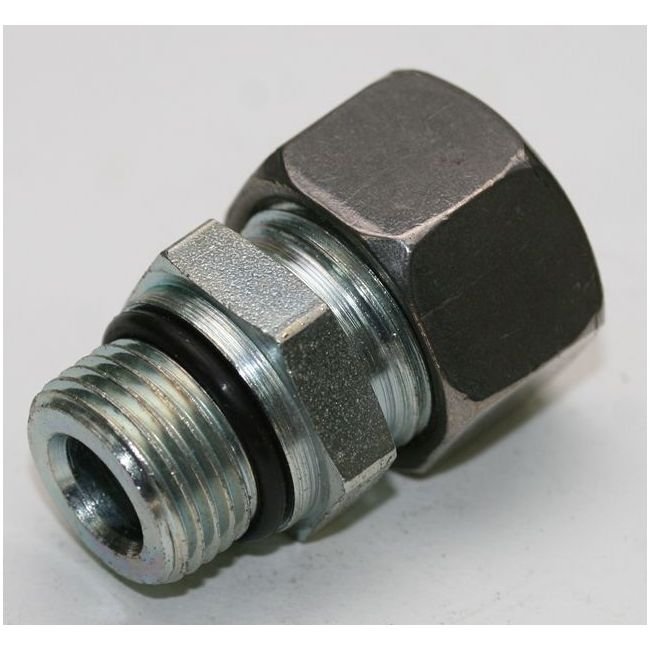

The Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A is a robust and reliable fitting made of Carbon Steel, designed for heavy-duty applications. With a tube diameter of 30.0 mm and a nominal operating pressure of 400 bar, this coupling ensures secure connections. Meeting DIN 2353 standards, this coupling guarantees high performance and durability. The Equipped B3 Ring adds an extra layer of sealing efficiency, making it ideal for industrial applications.

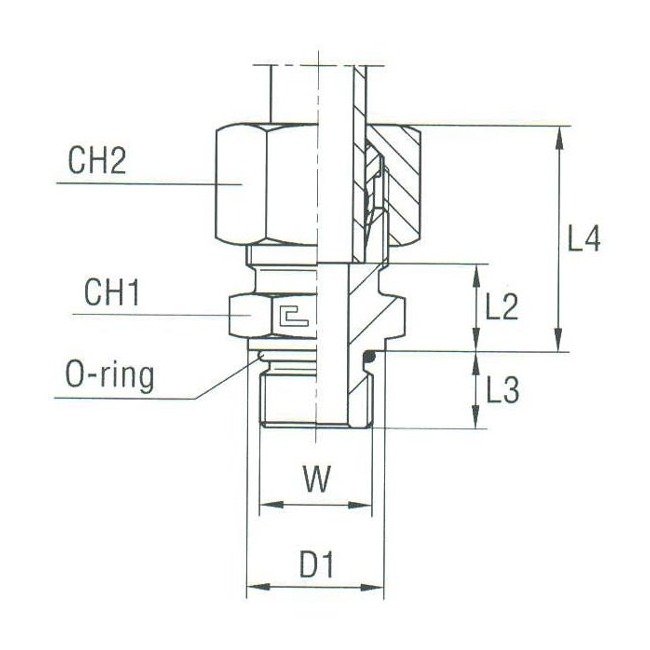

Product Specifications
Specifications Ch1
46 mm
Specifications Ch2
50 mm
Specifications D1
40.8 mm
Specifications L2
23.4 mm
Specifications L3
15.1 mm
Specifications L4
50.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
Specifications W Thread Size
1 5/16-12
