Heavy Duty Male Stud Coupling with Elastomer Seal
Heavy Duty Male Stud Coupling with Elastomer Seal
SKU:FIT-013b26
High-performance Male Stud Coupling with Elastomer Seal, carbon steel construction, DIN 2353 compliant, for 10.0 mm tube diameter.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with Elastomer Seal
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with Elastomer Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

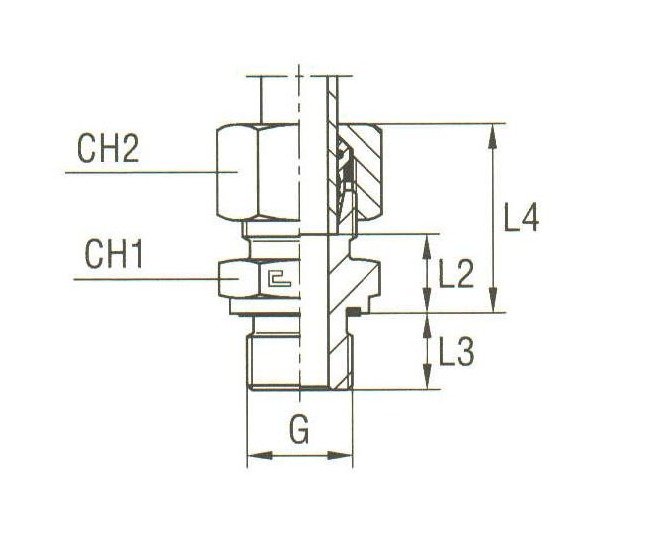

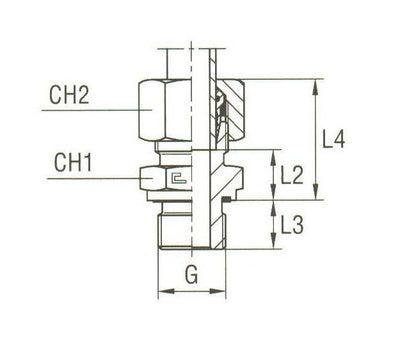

The Male Stud Coupling with Elastomer Seal Thread BSP Parallel - Equipped B4 Ring is a heavy-duty fitting crafted from carbon steel, designed for a tube diameter of 10.0 mm. With a nominal operating pressure of 630 bar, this coupling ensures robust performance in demanding industrial applications. Compliant with DIN 2353 standards, it features precise dimensions including L2: 17.5 mm, L3: 14.0 mm, L4: 33.5 mm, CH1: 27 mm, and CH2: 22 mm.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
22 mm
Specifications G Thread Size
1/2
Specifications L2
17.5 mm
Specifications L3
14.0 mm
Specifications L4
33.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
