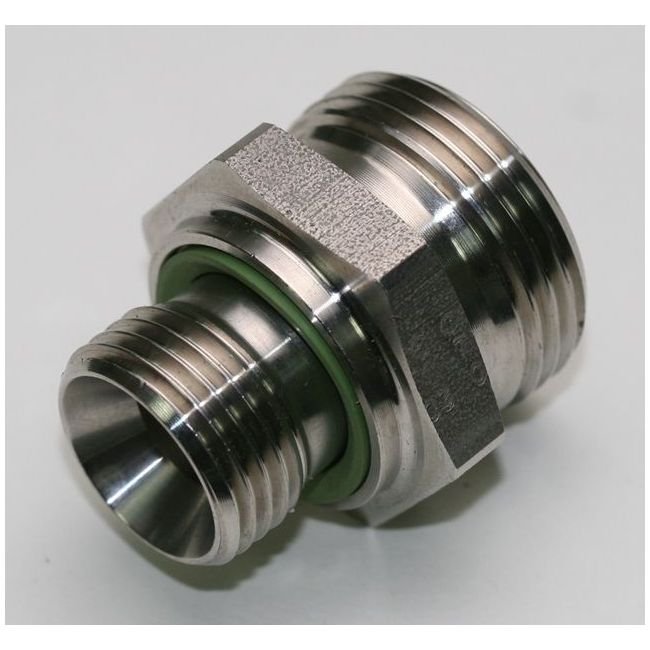

Heavy Duty Male Stud Coupling with Elastomer Seal, BSP Parallel - Carbon Steel, 1/4 G, DIN 2353

Name: Heavy Duty Male Stud Coupling with Elastomer Seal, BSP Parallel - Carbon Steel, 1/4 G, DIN 2353
Brand: World Wide Metric, Inc.
SKU: FIT-27f519
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-27f519

Heavy Duty Male Stud Coupling with Elastomer Seal for high-pressure applications - Carbon Steel, 1/4 G, DIN 2353

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

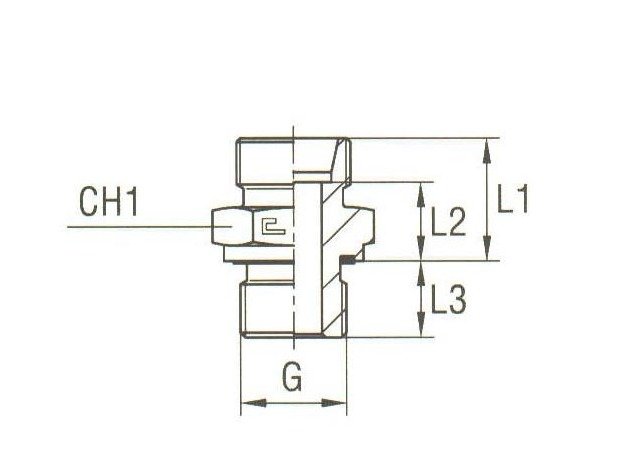

The Heavy Duty Male Stud Coupling with Elastomer Seal is designed for reliable performance under high pressure conditions up to 630 bar. Constructed from durable carbon steel, this fitting ensures a secure connection for 8.0 mm tube diameters. With precise dimensions conforming to DIN 2353 standards, it features a 1/4 G thread size and dimensions of L1: 22 mm, L2: 15 mm, L3: 12.0 mm, CH1: 19.0 mm. Ideal for applications requiring robust fittings that meet stringent industry standards.

Product Specifications

Specifications Ch1

19.0 mm

Specifications G Thread Size

1/4

Specifications L1

22 mm

Specifications L2

15 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel
