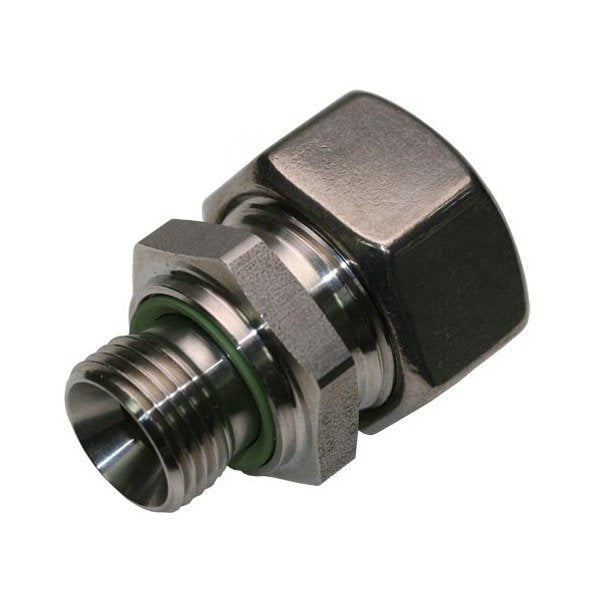

Heavy Duty Male Stud Coupling with Elastomer Seal, BSP Parallel, Equipped B3 Ring

Name: Heavy Duty Male Stud Coupling with Elastomer Seal, BSP Parallel, Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-8af47d
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-8af47d

Reliable Stainless Steel Male Stud Coupling with Elastomer Seal, BSP Parallel, Ideal for High-Pressure Applications

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling with Elastomer Seal is a durable and reliable fitting made of high-quality Stainless Steel. With a tube diameter of 10.0mm and a G-Thread Size of 3/8, this coupling can withstand a Nominal Operating Pressure of 630 bar. Meeting DIN 2353 standards, it ensures secure connections and leak-free operations. The inclusion of the Equipped B3 Ring adds an extra layer of safety and stability to your hydraulic systems.

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

22 mm

Specifications G Thread Size

3/8

Specifications L2

15 mm

Specifications L3

12.0 mm

Specifications L4

31 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel
