Heavy Duty Male Stud Coupling with Elastomer Seal, BSP Parallel - Equipped B3 Ring, DIN 2353 Compliant

Name: Heavy Duty Male Stud Coupling with Elastomer Seal, BSP Parallel - Equipped B3 Ring, DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-3a8ec5
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-3a8ec5

Heavy Duty Male Stud Coupling with Elastomer Seal, BSP Parallel Thread, Carbon Steel construction. DIN 2353 compliant, 630 bar.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

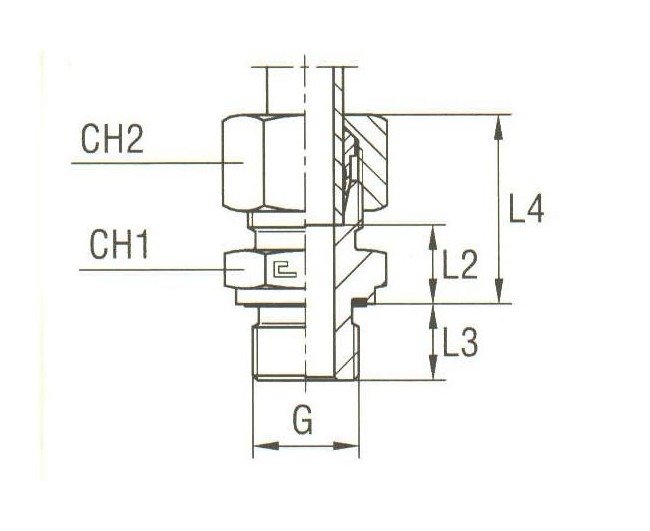

The Heavy Duty Male Stud Coupling with Elastomer Seal, featuring a BSP Parallel thread and Equipped B3 Ring, is expertly crafted from Carbon Steel to ensure durability. With a Tube Diameter of 6.0 mm and a G - Thread Size of 1/4, this coupling operates at a Nominal Pressure of 630 bar, meeting DIN 2353 standards. Its dimensions include L2: 13.0 mm, L3: 12.0 mm, L4: 28 mm, CH1: 19.0 mm, and CH2: 17.0 mm, ensuring precise fit and performance for various applications.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

17.0 mm

Specifications G Thread Size

1/4

Specifications L2

13.0 mm

Specifications L3

12.0 mm

Specifications L4

28 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel
