Heavy Duty Male Stud Coupling with Elastomer Seal - High Pressure Fitting, DIN 2353 Compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Coupling with Elastomer Seal Thread Metric Parallel - Equipped B3 Ring is a top-tier fitting suitable for high-pressure applications up to 630 bar. Crafted from durable Carbon Steel, this coupling ensures a secure and leak-free connection. With precise dimensions meeting DIN 2353 standards, including a tube diameter of 12.0 mm and an M - Thread Size of 22x1.5, this coupling guarantees reliable performance and longevity. Its compact design, with L2 of 17.5 mm, L3 of 14.0 mm, and L4 of 33.5 mm, makes it ideal for tight spaces. The Male Stud Coupling with Elastomer Seal is engineered for efficiency and durability in industrial settings.

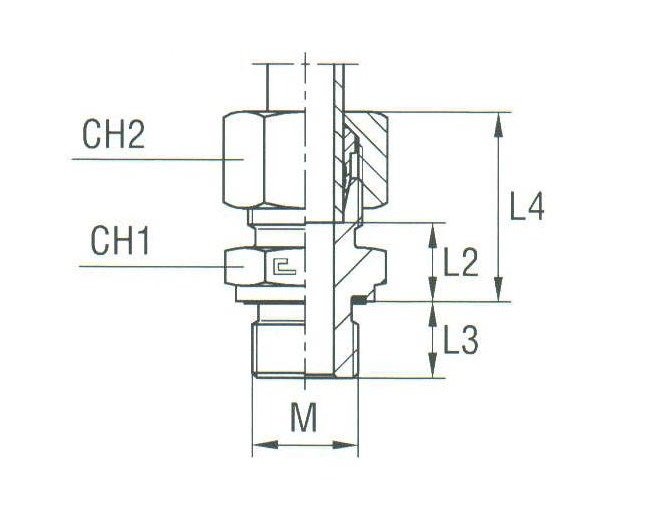

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
24 mm
Specifications L2
17.5 mm
Specifications L3
14.0 mm
Specifications L4
33.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
