Heavy Duty Male Stud Coupling with Elastomer Seal - Metric Parallel

Name: Heavy Duty Male Stud Coupling with Elastomer Seal - Metric Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-f34930
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f34930

Heavy Duty Male Stud Coupling for High-Pressure Applications - DIN 2353 Standards

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

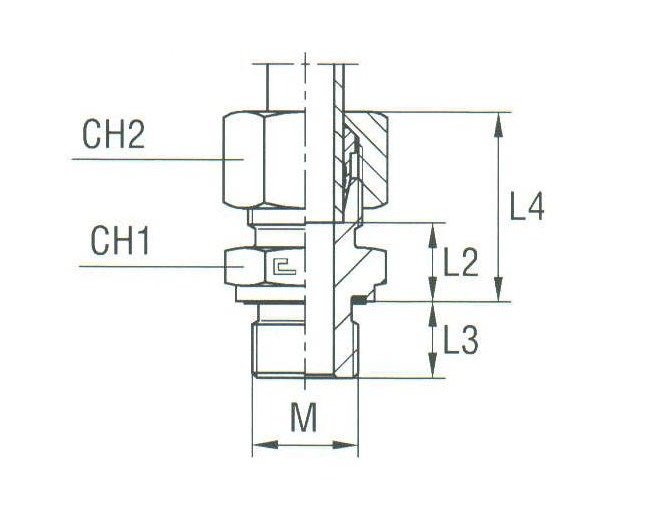

The Heavy Duty Male Stud Coupling with Elastomer Seal is a robust solution for high-pressure applications with a pressure rating of 630 bar. Crafted from durable Carbon Steel, this fitting ensures reliable performance. Featuring a Tube Diameter of 8.0 mm and an M - Thread Size of 14x1.5, it meets DIN 2353 standards. With precise dimensions of L2: 15 mm, L3: 12.0 mm, L4: 30 mm, CH1: 19.0 mm, and CH2: 19.0 mm, this coupling offers a secure and leak-free connection.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications L2

15 mm

Specifications L3

12.0 mm

Specifications L4

30 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel

Heavy Duty Male Stud Coupling with Elastomer Seal - Metric Parallel
