Heavy Duty Male Stud Coupling with Elastomer Seal - Metric Parallel Thread B3 Ring

Name: Heavy Duty Male Stud Coupling with Elastomer Seal - Metric Parallel Thread B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-78bc22
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-78bc22

High-pressure Male Stud Coupling with Carbon Steel construction, DIN 2353 compliant, for reliable connections in industrial applications.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling with Elastomer Seal features a robust design suitable for high-pressure applications with a maximum operating pressure of 630 bar. Crafted from durable Carbon Steel, this coupling ensures long-lasting performance. With a precise M-thread size of 20x1.5 and compliance with DIN 2353 standards, it guarantees a secure and leak-free connection. The 14.0mm tube diameter and optimized dimensions provide a perfect fit for various industrial systems, enhancing efficiency and reliability.

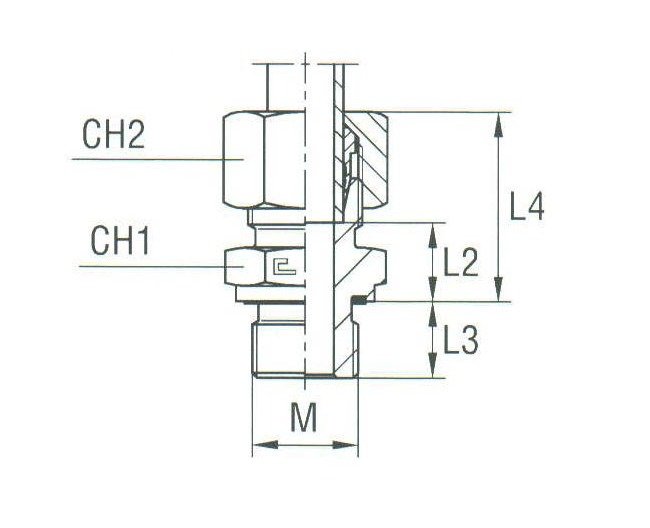

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications L2

19.0 mm

Specifications L3

14.0 mm

Specifications L4

37.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

14.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel

Heavy Duty Male Stud Coupling with Elastomer Seal - Metric Parallel Thread B3 Ring
