Heavy Duty Male Stud Coupling with Elastomer Seal - Stainless Steel Body (42x2 Thread, 30.0mm Tube Diameter)
Heavy Duty Male Stud Coupling with Elastomer Seal - Stainless Steel Body (42x2 Thread, 30.0mm Tube Diameter)
SKU:FIT-b1a0e6
Premium stainless steel Male Stud Coupling with Elastomer Seal for heavy-duty applications. DIN 2353 compliant, 400 bar rated.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with Elastomer Seal - Stainless Steel Body (42x2 Thread, 30.0mm Tube Diameter)
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with Elastomer Seal - Stainless Steel Body (42x2 Thread, 30.0mm Tube Diameter)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

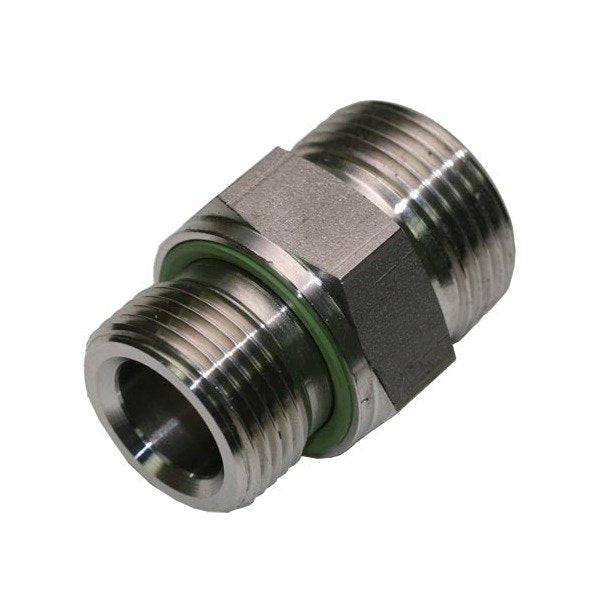

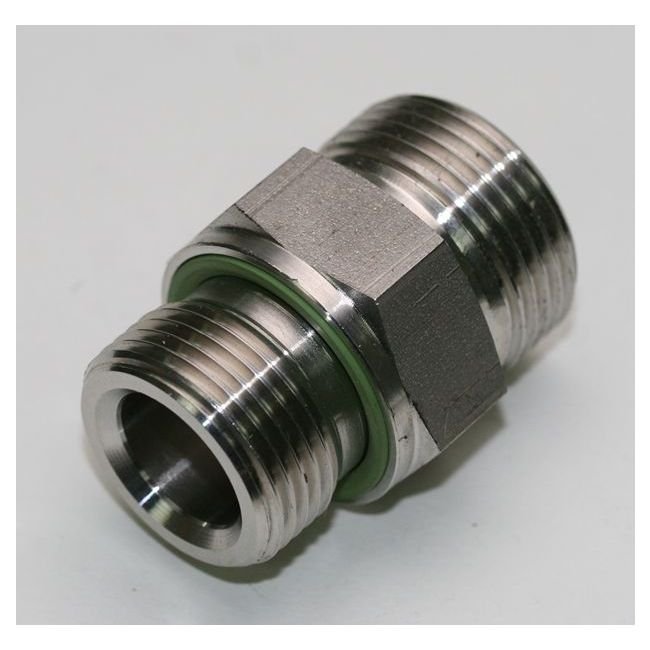

The Heavy Duty Male Stud Coupling with Elastomer Seal is crafted from high-grade stainless steel, ensuring durability and reliability under intense pressure up to 400 bar. Featuring a precise metric parallel thread size of 42x2, this coupling is designed for seamless tube connections with a 30.0mm diameter. Compliant with DIN 2353 standards, this coupling guarantees a secure and leak-free fit, making it ideal for industrial applications requiring superior performance.

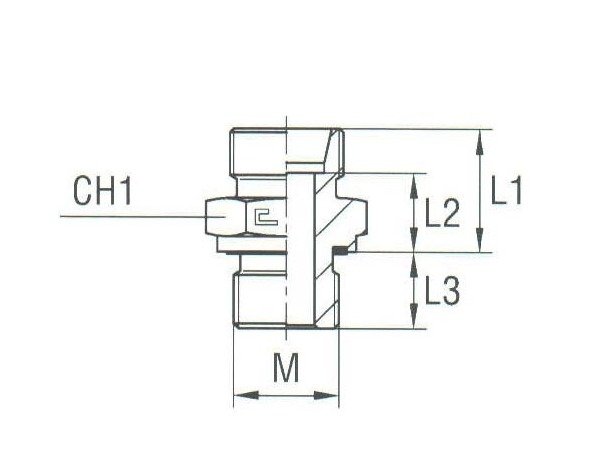

Product Specifications
Specifications Ch1
50 mm
Specifications L1
37.0 mm
Specifications L2
23.5 mm
Specifications L3
20.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
