Heavy Duty Male Stud Coupling with O-Ring and Washer BSP Parallel
Heavy Duty Male Stud Coupling with O-Ring and Washer BSP Parallel
SKU:FIT-e7237d
Heavy Duty Male Stud Coupling with O-Ring and Washer, Carbon Steel, DIN 2353 Compliant, Nominal Pressure 315 bar
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with O-Ring and Washer BSP Parallel
$24.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with O-Ring and Washer BSP Parallel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

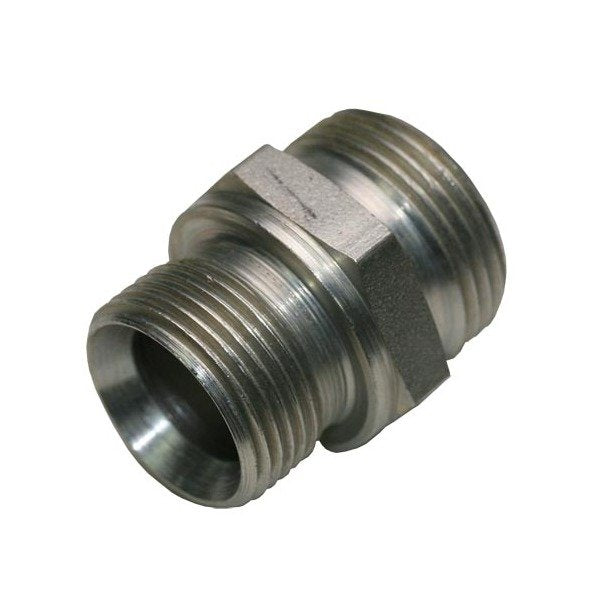

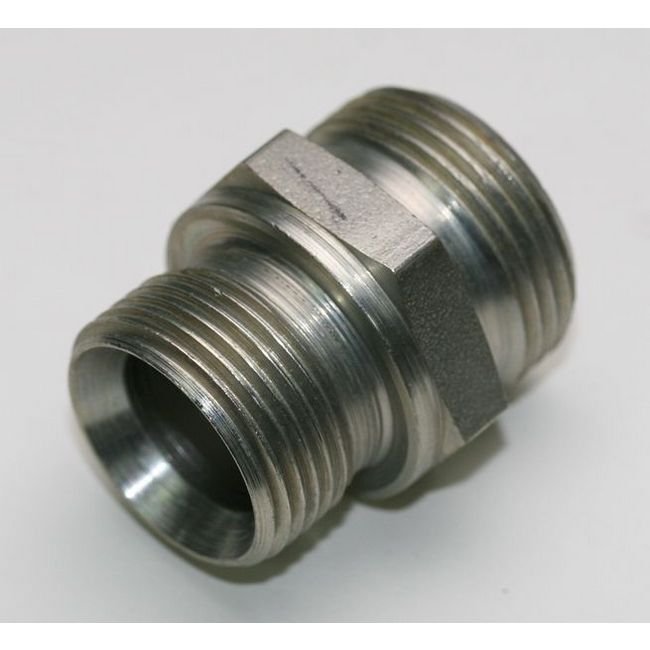

The Heavy Duty Male Stud Coupling with O-Ring and Washer Thread BSP Parallel is designed for demanding applications, with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, this coupling ensures reliable performance under high pressure conditions. Compliant with DIN 2353 standards, it features a tube diameter of 10.0 mm and a precision-engineered G-Thread Size of 3/8, offering a secure and leak-free connection. With dimensions meeting industry requirements (L1: 22.3mm, L2: 14.8mm, L3: 10.2mm, CH1: 22mm), this coupling guarantees a tight and efficient fit for various hydraulic systems.
Product Specifications
Specifications Ch1
22 mm
Specifications G Thread Size
3/8
Specifications L1
22.3 mm
Specifications L2
14.8 mm
Specifications L3
10.2 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
