Heavy Duty Male Stud Coupling with O-Ring and Washer - BSP Parallel
Heavy Duty Male Stud Coupling with O-Ring and Washer - BSP Parallel
SKU:FIT-6d53b6
High-performance male stud coupling with O-Ring and Washer, ideal for heavy-duty applications. DIN 2353 compliant.
Regular price
$37.99
Regular price
Sale price
$37.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with O-Ring and Washer - BSP Parallel
$37.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with O-Ring and Washer - BSP Parallel
$37.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Coupling with O-Ring and Washer features a pressure rating of 280 bar, making it ideal for demanding applications. Crafted from high-quality carbon steel, this coupling ensures durability and reliability. With a tube diameter of 30.0 mm and DIN 2353 compliance, it guarantees a secure and leak-free connection. The equipped B3 ring enhances sealing performance, offering peace of mind in critical industrial environments.

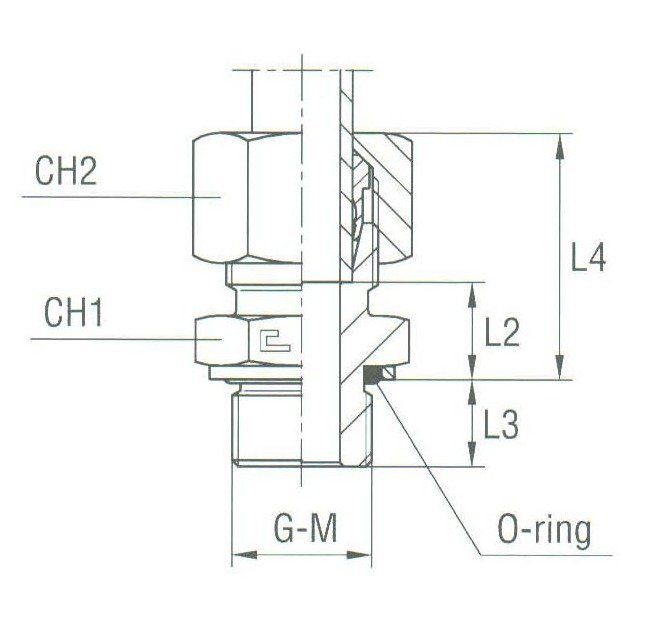

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
50 mm
Specifications G Thread Size
1 1/4
Specifications L2
23.6 mm
Specifications L3
17.4 mm
Specifications L4
50.1 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
280 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
