Heavy Duty Male Stud Coupling with O-Ring, BSP Parallel Thread - DIN 2353 Compliant
Heavy Duty Male Stud Coupling with O-Ring, BSP Parallel Thread - DIN 2353 Compliant
SKU:FIT-b0e875
High-performance male stud coupling for heavy-duty applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with O-Ring, BSP Parallel Thread - DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with O-Ring, BSP Parallel Thread - DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Coupling with O-Ring and Washer Thread BSP Parallel is designed for rigorous applications requiring a pressure rating of 315 bar. Made of durable carbon steel, this coupling ensures reliable connections with a tube diameter of 16.0 mm. It meets DIN 2353 standards, making it ideal for industrial use where quality and performance are paramount.

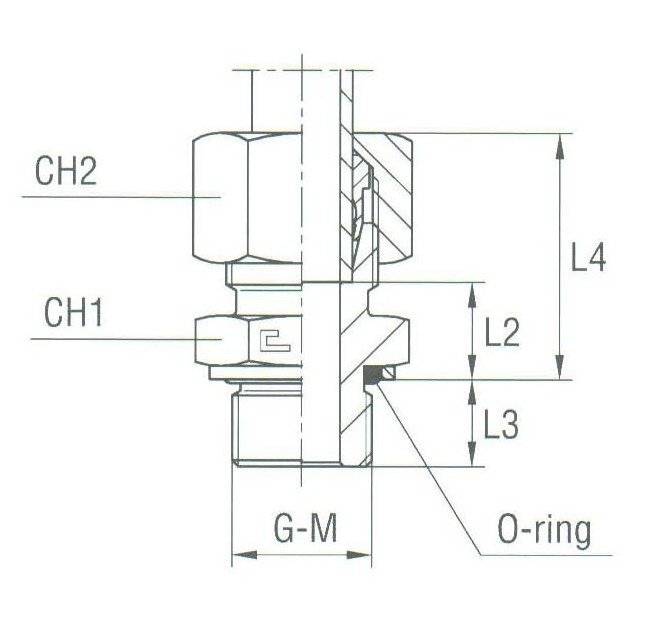

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications G Thread Size
1/2
Specifications L2
18.3 mm
Specifications L3
12.2 mm
Specifications L4
36.8 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
