Heavy Duty Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
Heavy Duty Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
SKU:FIT-4183f6
Heavy Duty Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant - Ideal for high-pressure industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

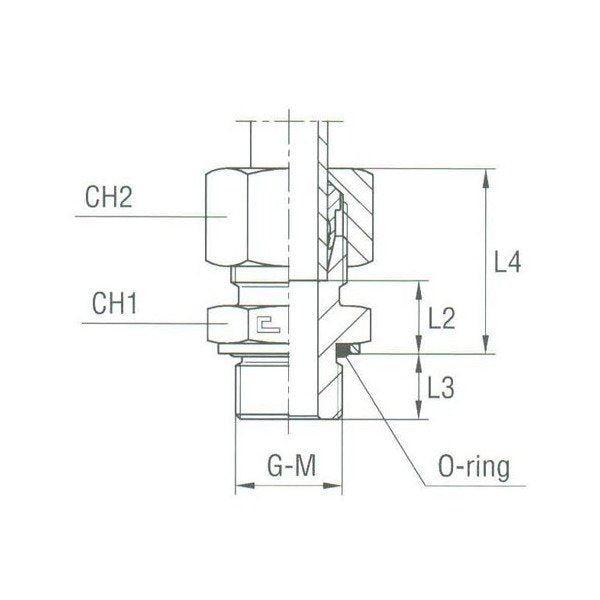

The Heavy Duty Male Stud Coupling with O-Ring and Washer Thread Metric Parallel - Equipped B3 Ring is a robust and reliable fitting designed for industrial use. Constructed from durable carbon steel, it can withstand heavy-duty applications with a nominal operating pressure of 315 bar. This fitting features a tube diameter of 14.0mm, M - Thread Size of 20x1.5, and complies with DIN 2353 standards. Its precise dimensions including L2, L3, L4, CH1, and CH2 ensure secure and leak-free connections, making it ideal for demanding environments.
Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
27 mm
Specifications L2
18.9 mm
Specifications L3
12.6 mm
Specifications L4
36.9 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
20x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
