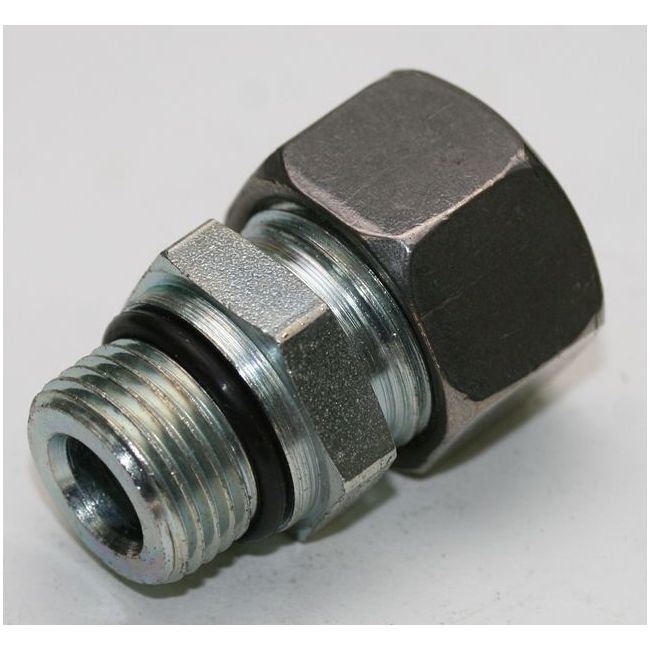

The Male Stud Coupling with O-Ring Thread UNF/UN-2A is engineered for heavy-duty applications, featuring a durable carbon steel construction. With a tube diameter of 25.0 mm and a nominal operating pressure of 400 bar, this coupling ensures reliable performance under high pressure. Compliant with DIN 2353 standards, it offers precision and quality for industrial fittings.

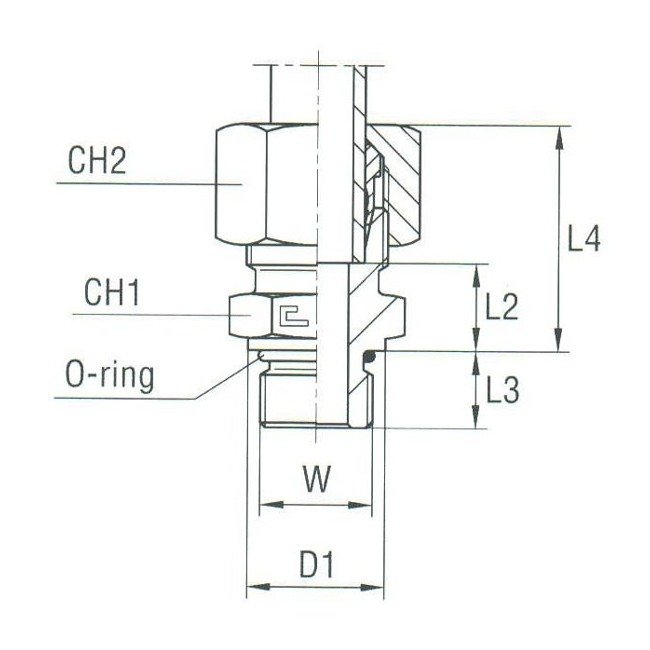

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
46 mm
Specifications D1
40.8 mm
Specifications L2
22.9 mm
Specifications L3
15.1 mm
Specifications L4
47 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
Specifications W Thread Size
1 5/16-12
