Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A

Name: Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-2e0036
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-2e0036

Durable Male Stud Coupling with O-Ring Thread UNF/UN-2A, Heavy Duty, DIN 2353 Compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A is expertly crafted from carbon steel, meeting DIN 2353 standards. With a nominal operating pressure of 400 bar, this fitting is designed for durability and performance. Featuring a tube diameter of 25.0 mm and precision measurements for a secure fit, this coupling ensures reliable connections in demanding industrial settings. The included B4 Ring enhances sealing efficiency, making it an ideal choice for high-pressure applications.

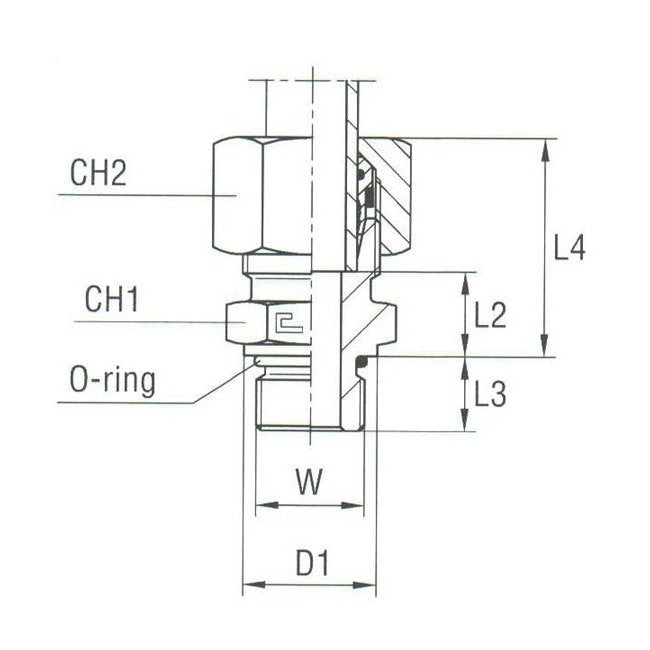

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

46 mm

Specifications D1

40.8 mm

Specifications L2

22.9 mm

Specifications L3

15.1 mm

Specifications L4

47 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

25.0 mm

Specifications W Thread Size

1 5/16-12

Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A
