Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Carbon Steel
Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Carbon Steel
SKU:FIT-d7b51a
High-quality Male Stud Coupling with O-Ring Thread UNF/UN-2A for heavy-duty applications. Ensures secure and leak-free connections meeting DIN 2353 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Carbon Steel
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Carbon Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

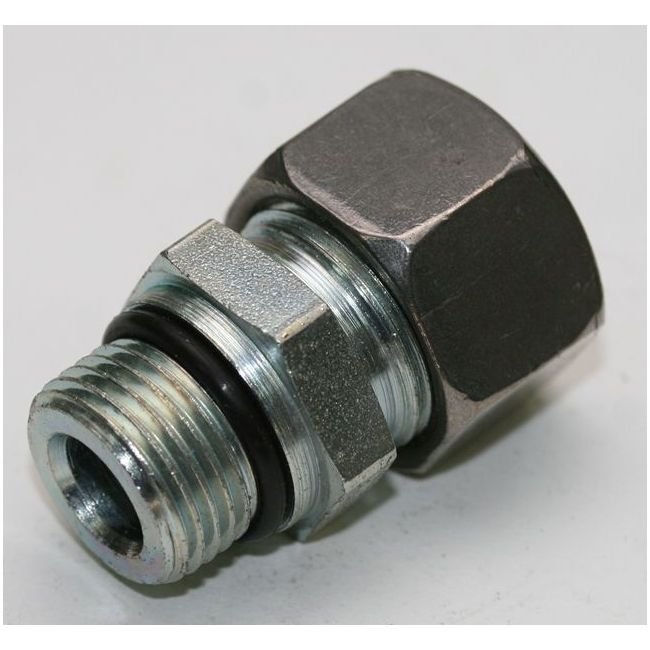

The Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A is a robust and reliable fitting designed for demanding industrial applications. Made of high-quality carbon steel, this coupling ensures durability and long-lasting performance. With a tube diameter of 6.0 mm and a nominal operating pressure of 630 bar, it meets DIN 2353 standards for quality and safety. The equipped B3 ring provides a secure connection and prevents leaks, making it ideal for high-pressure environments.

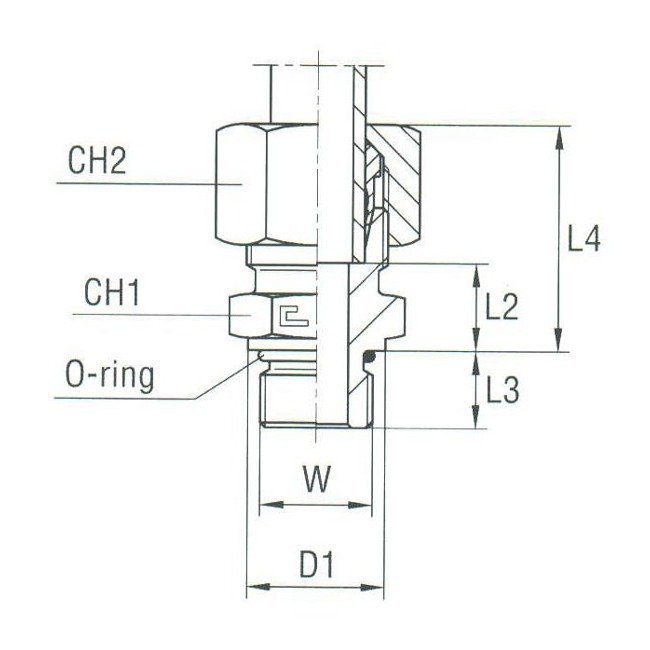

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
17.0 mm
Specifications D1
16.8 mm
Specifications L2
14.9 mm
Specifications L3
9.1 mm
Specifications L4
30 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Specifications W Thread Size
1/2-20
