Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Carbon Steel Body

Name: Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Carbon Steel Body
Brand: World Wide Metric, Inc.
SKU: FIT-5100d7
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-5100d7

Heavy-duty Male Stud Coupling with UNF/UN-2A O-Ring Thread, Carbon Steel Body. Reliable & durable for high-pressure applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

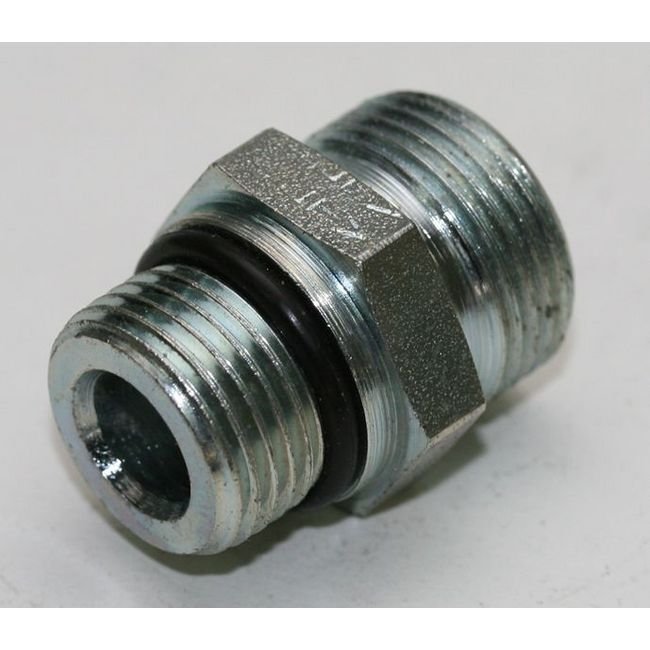

The Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only is designed for heavy-duty applications, with a nominal operating pressure of 630 bar. Constructed from high-quality carbon steel, this fitting ensures durability and reliability. It features precise specifications such as a tube diameter of 8.0mm, L1 of 21.9mm, and conforms to DIN 2353 standards. Ideal for use in demanding industrial environments where robust performance is required.

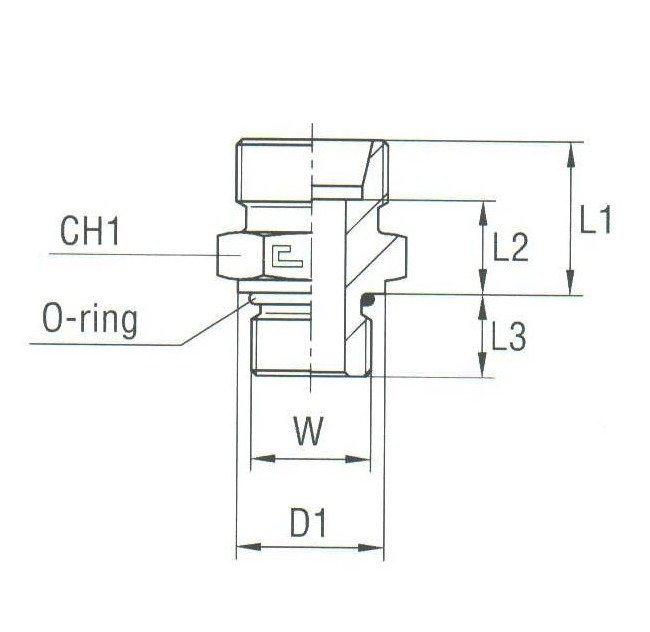

Product Specifications

Specifications Ch1

17.0 mm

Specifications D1

13.8 mm

Specifications L1

21.9 mm

Specifications L2

14.9 mm

Specifications L3

9.1 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Specifications W Thread Size

7/16-20
