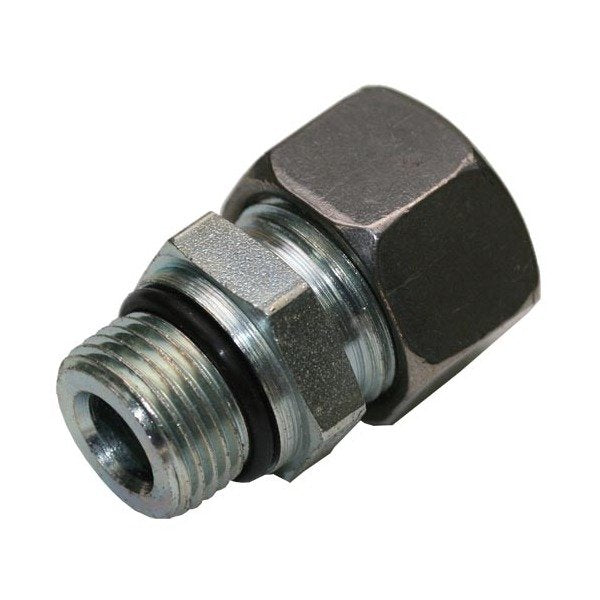

Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring

Name: Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-9241c9
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-9241c9

High-quality stainless steel male stud coupling for heavy-duty industrial use, DIN 2353 compliant with superior sealing.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A is crafted from high-grade stainless steel, ensuring durability and reliability in demanding industrial applications. With a tube diameter of 12.0mm and a nominal operating pressure of 630 bar, this coupling excels in high-pressure environments. Compliant with DIN 2353 standards, it offers precise fittings for secure connections. The inclusion of the Equipped B3 Ring enhances sealing efficiency, making it a trusted choice for fluid systems.

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

24 mm

Specifications D1

18.8 mm

Specifications L2

14.5 mm

Specifications L3

10 mm

Specifications L4

30.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Specifications W Thread Size

9/16-18

Heavy Duty Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring
