Heavy Duty Male Stud Coupling with O-Ring & Washer, BSP Parallel - Equipped B4 Ring

Name: Heavy Duty Male Stud Coupling with O-Ring & Washer, BSP Parallel - Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-2d5521
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-2d5521

High pressure Male Stud Coupling with Viton seal, DIN 2353 compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling is designed for high-pressure applications, with a nominal operating pressure of 315 bar. Constructed from durable Carbon Steel, this coupling features a 12.0 mm tube diameter and G-Thread Size of 3/8. Equipped with an elastomeric Viton seal, it ensures reliable sealing. Compliant with DIN 2353 standards, this coupling is a reliable choice for industrial settings requiring robust fittings.

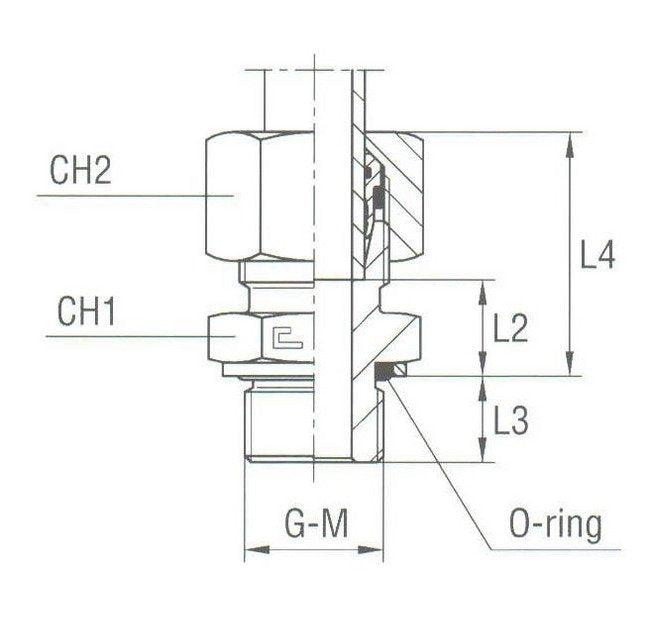

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

24 mm

Specifications G Thread Size

3/8

Specifications L2

16.8 mm

Specifications L3

10.2 mm

Specifications L4

32.8 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Heavy Duty

Specifications Sealing

Elastometric Viton Seal

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread BSP Parallel

Heavy Duty Male Stud Coupling with O-Ring & Washer, BSP Parallel - Equipped B4 Ring
