Heavy Duty Male Stud Non Return Valve 400 Bar with Elastomer Seal Thread Metric Parallel
Heavy Duty Male Stud Non Return Valve 400 Bar with Elastomer Seal Thread Metric Parallel
SKU:FIT-88f75b
Reliable Heavy Duty Male Stud Non Return Valve for hydraulic applications, 400 bar, stainless steel construction, elastomer seal.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve 400 Bar with Elastomer Seal Thread Metric Parallel
$42.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve 400 Bar with Elastomer Seal Thread Metric Parallel
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve is designed for reliable hydraulic applications. With a nominal operating pressure of 400 bar, stainless steel construction, and precision-engineered dimensions, this valve ensures efficient fluid control. The elastomer seal provides a secure fit, while the equipped B3 ring enhances durability. Meeting stringent industry standards, this valve is ideal for both consumer and institutional use.
Ready to Grow Without Cash Flow Constraints?

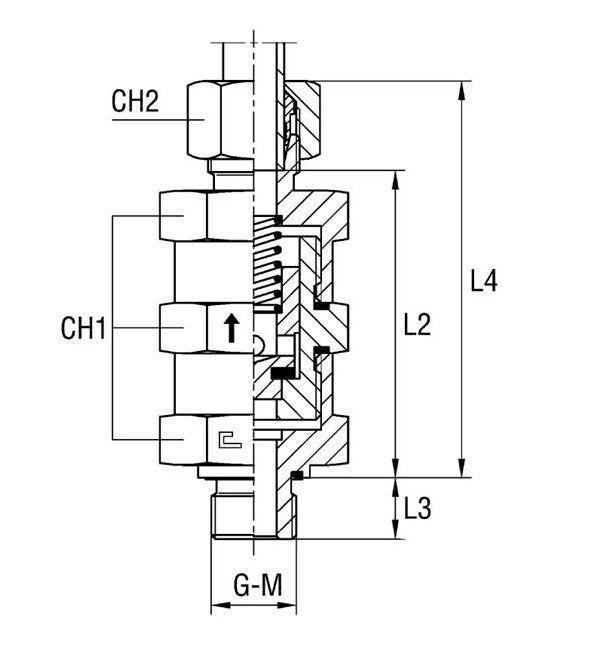

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
55.0 mm
Specifications L3
12.0 mm
Specifications L4
69.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
8.0 mm
