Heavy Duty Male Stud Non Return Valve BSP Parallel
Heavy Duty Male Stud Non Return Valve BSP Parallel
SKU:VAL-edaba2
Durable Male Stud Non Return Valve with 400 bar pressure rating for precise hydraulic control.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve BSP Parallel
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve BSP Parallel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with Elastomer Seal has a Nominal Operating Pressure of 400 bar, ideal for hydraulic systems. Constructed from Carbon Steel, it provides durability and reliability. With a Tube Diameter of 16.0mm and G-Thread Size of 1/2, this valve ensures efficient flow control. The valve is compliant with federal procurement standards and industry certifications, making it a trusted choice for institutional buyers.

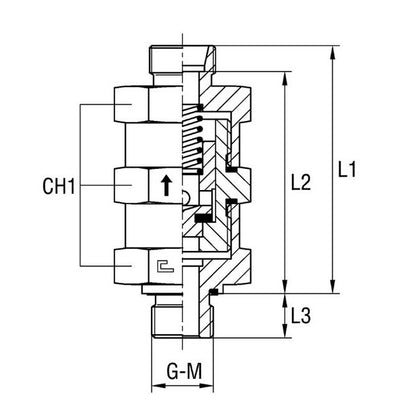

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L1
74 mm
Specifications L2
65.5 mm
Specifications L3
14.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
