Heavy Duty Male Stud Non Return Valve BSP Taper - Body Only
Heavy Duty Male Stud Non Return Valve BSP Taper - Body Only
SKU:VAL-48031d
Ensure optimal flow control with our high-pressure Male Stud Non Return Valve. Heavy-duty construction for reliable performance in hydraulic systems.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve BSP Taper - Body Only
$69.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve BSP Taper - Body Only
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve Thread BSP Taper - Body Only is a reliable valve designed for high-pressure hydraulic systems. With a nominal operating pressure of 250 bar, this valve ensures efficient flow control and prevents backflow. Crafted from durable carbon steel, it features a G-Thread Size of 1 1/2, a tube diameter of 38.0 mm, and precise dimensions for optimal performance. Ideal for industrial applications requiring robust and efficient check valve solutions.

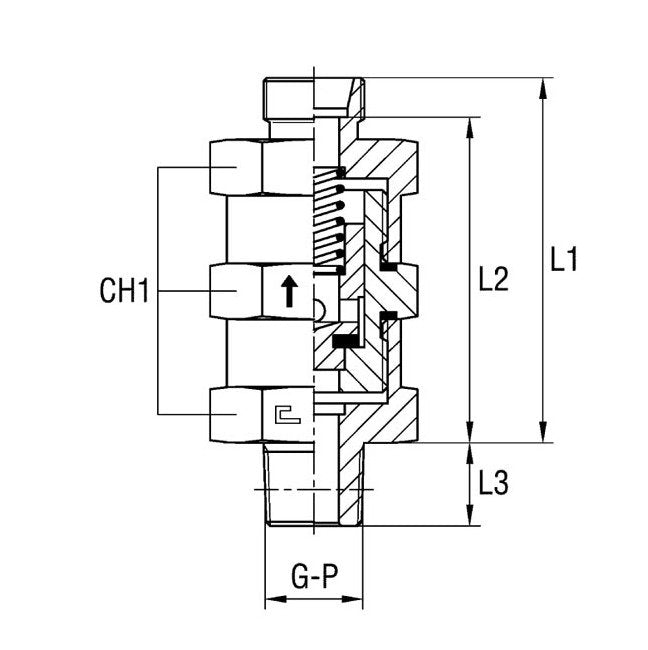

Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications G Thread Size
1 1/2
Specifications L1
106 mm
Specifications L2
90 mm
Specifications L3
25.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
38.0 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
