Heavy Duty Male Stud Non Return Valve - BSP Taper, Carbon Steel, 400 bar

Name: Heavy Duty Male Stud Non Return Valve - BSP Taper, Carbon Steel, 400 bar
Brand: World Wide Metric, Inc.
SKU: FIT-742550
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-742550

Reliable Heavy Duty Male Stud Non Return Valve for high-pressure hydraulic systems. Durable Carbon Steel construction, 400 bar pressure.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

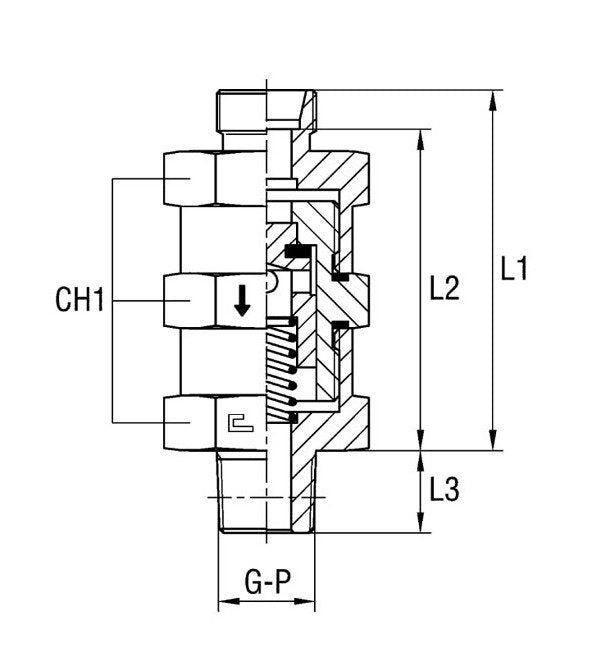

The Heavy Duty Male Stud Non Return Valve is a reliable hydraulic component designed for high-pressure applications. With a Nominal Operating Pressure of 400 bar, this valve features a Tube Diameter of 16.0 mm and a G-Thread Size of 1/2. Crafted from durable Carbon Steel, it ensures long-term performance and resistance to corrosion. The valve's precision-engineered design includes specific measurements such as L1: 71.0 mm, L2: 62.5 mm, L3: 19.0 mm, CH1: 41 mm, and a Passage Diameter of 11 mm. Ensure optimal flow control and system efficiency with this quality valve.

Product Specifications

Specifications Ch1

41 mm

Specifications Diameter Pass

11 mm

Specifications G Thread Size

1/2

Specifications L1

71.0 mm

Specifications L2

62.5 mm

Specifications L3

19.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Tube Diameter

16.0 mm
