Heavy Duty Male Stud Non Return Valve BSP Taper - Equipped B3 Ring
Heavy Duty Male Stud Non Return Valve BSP Taper - Equipped B3 Ring
SKU:VAL-20908b
High-pressure male stud non-return valve with 400 bar operating pressure and DIN Valve compliance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve BSP Taper - Equipped B3 Ring
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve BSP Taper - Equipped B3 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

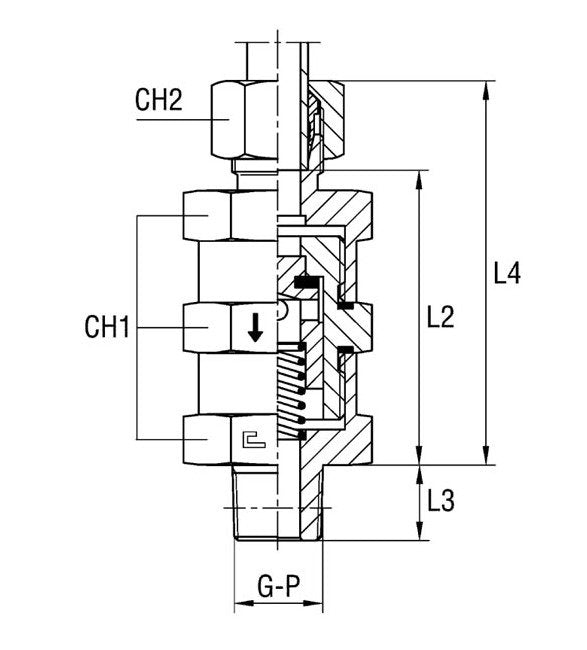

The Heavy Duty Male Stud Non Return Valve BSP Taper with Equipped B3 Ring is designed for high-pressure hydraulic systems, with a heavy-duty carbon steel construction suitable for nominal operating pressures up to 400 bar. Its precise engineering ensures reliable performance, with a tube diameter of 20.0mm and G-Thread Size of 3/4, meeting the stringent requirements of DIN Valves. The valve's compact design, featuring CH1 at 50mm and CH2 at 36mm, coupled with dimensions L2 (71.5mm), L3 (19.0mm), and L4 (93mm), makes it ideal for applications demanding efficiency and durability.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
36 mm
Specifications Diameter Pass
16 mm
Specifications G Thread Size
3/4
Specifications L2
71.5 mm
Specifications L3
19.0 mm
Specifications L4
93 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
20.0 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
