Heavy Duty Male Stud Non Return Valve BSP Taper with Equipped B4 Ring
Heavy Duty Male Stud Non Return Valve BSP Taper with Equipped B4 Ring
SKU:FIT-332650
High-pressure Non Return Valve with B4 Ring for reliable hydraulic performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve BSP Taper with Equipped B4 Ring
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve BSP Taper with Equipped B4 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve features a robust design suitable for high-pressure applications with a Nominal Operating Pressure of 400 bar. Crafted from Carbon Steel, this valve ensures durability and reliability. The included B4 Ring enhances sealing for optimal performance, making it ideal for hydraulic systems in industrial settings.

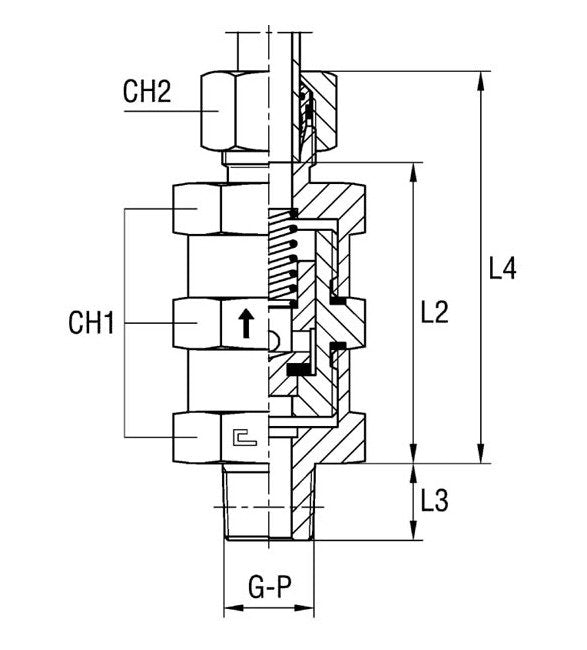

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
27 mm
Specifications Diameter Pass
10 mm
Specifications G Thread Size
1/2
Specifications L2
63 mm
Specifications L3
19.0 mm
Specifications L4
80.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
14.0 mm
