Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread
Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread
SKU:FIT-6c4b6b
High-performance Male Stud Non Return Valve with 400 bar pressure capacity. Stainless Steel construction for durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with Elastomer Seal offers superior performance with a Nominal Operating Pressure of 400 bar. Crafted from high-quality Stainless Steel, it features a 12.0 mm Tube Diameter and precise 18x1.5 M - Thread Size. With dimensions conforming to institutional standards, this valve ensures reliable hydraulic check operations with optimal durability and efficiency.
Ready to Grow Without Cash Flow Constraints?

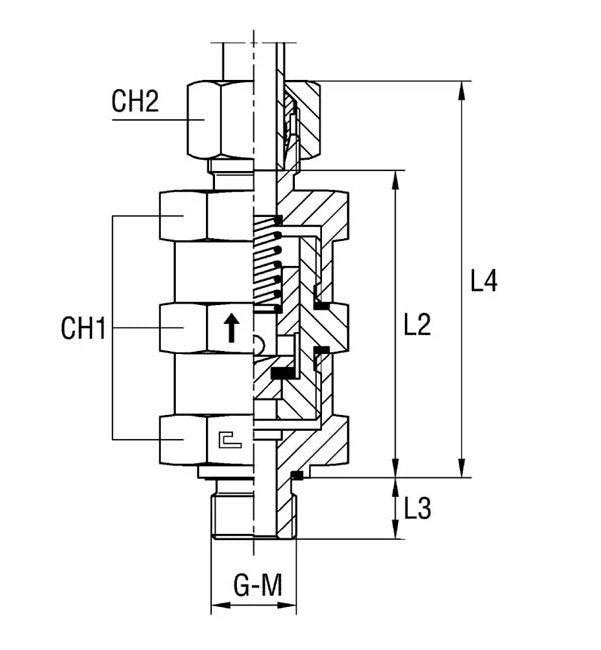

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
24 mm
Specifications Diameter Pass
8 mm
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications L4
77 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
12.0 mm
