Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread, Stainless Steel
Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread, Stainless Steel
SKU:FIT-25f789
Durable stainless steel Male Stud Non Return Valve for high-pressure hydraulic systems.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread, Stainless Steel
$69.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve - Metric Parallel Thread, Stainless Steel
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve features a reliable elastomer seal, designed for high-pressure systems with a nominal operating pressure of 400 bar. Crafted from durable stainless steel, this valve ensures long-lasting performance. With precise specifications including a tube diameter of 10.0 mm and M-thread size of 16x1.5, this valve is ideal for hydraulic applications where performance and durability are critical.
Ready to Grow Without Cash Flow Constraints?

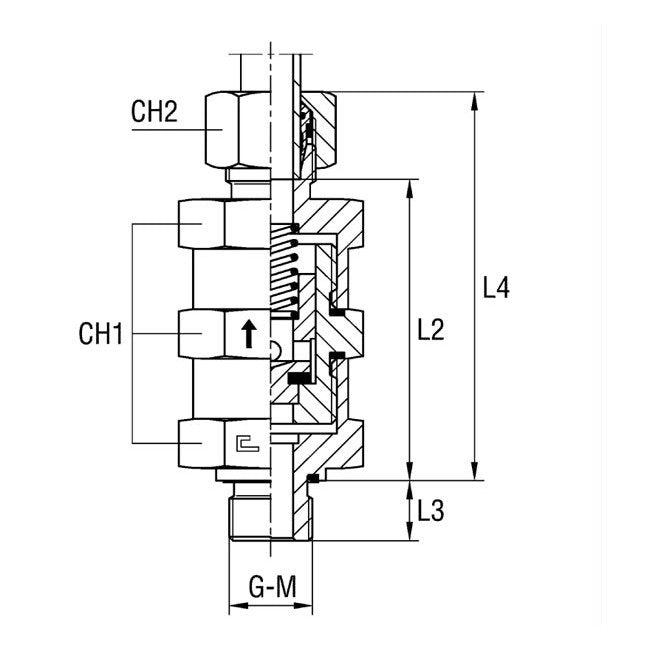

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications L4
77 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
