Heavy Duty Male Stud Non Return Valve, NPT Taper - Body Only
Heavy Duty Male Stud Non Return Valve, NPT Taper - Body Only
SKU:VAL-09eb0e
Heavy Duty Male Stud Non Return Valve for high-pressure hydraulic systems. Made of Carbon Steel, P-Thread Size 3/8, 400 bar pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve, NPT Taper - Body Only
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve, NPT Taper - Body Only
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

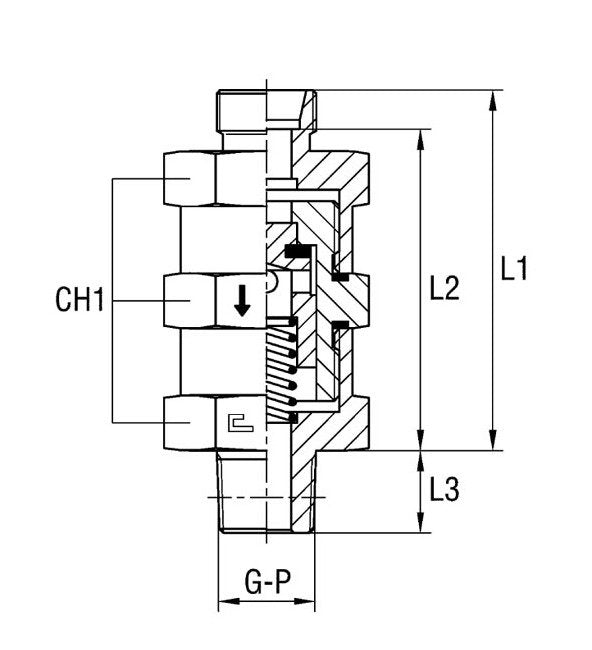

The Heavy Duty Male Stud Non Return Valve ensures reliable performance under high pressure, with a Nominal Operating Pressure of 400 bar. Constructed from Carbon Steel, this valve features a Tube Diameter of 12.0mm and a precise P-Thread Size of 3/8. With dimensions designed for optimal functionality including L1: 66.0mm, L2: 58.5mm, L3: 15mm, CH1: 32mm, and Diameter Pass: 8mm, this valve is ideal for hydraulic systems requiring secure flow control.
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications L1
66.0 mm
Specifications L2
58.5 mm
Specifications L3
15 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications P Thread Size
3/8
Specifications Tube Diameter
12.0 mm
Category 6
Male Stud Non Return Valve Thread NPT Taper
