Heavy Duty Male Stud Non Return Valve, NPT Taper - Equipped B4 Ring
Heavy Duty Male Stud Non Return Valve, NPT Taper - Equipped B4 Ring
SKU:FIT-9b5119
High-pressure Heavy Duty Male Stud Non Return Valve, ideal for hydraulic systems. Meets industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve, NPT Taper - Equipped B4 Ring
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve, NPT Taper - Equipped B4 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve features a robust design suitable for high-pressure applications, with a Nominal Operating Pressure of 400 bar. Constructed from durable Stainless Steel, this valve ensures reliability and long-lasting performance. With specifications meeting stringent industry standards, this valve is ideal for hydraulic systems in both institutional and consumer settings.
Ready to Grow Without Cash Flow Constraints?

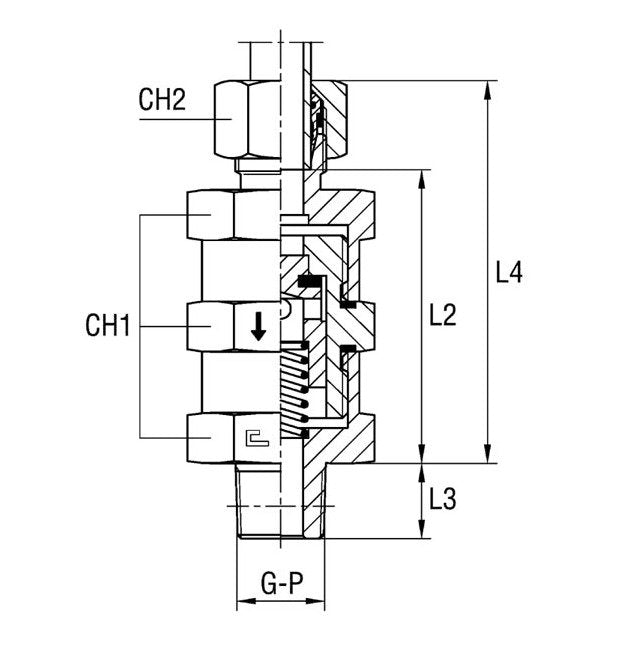

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
27 mm
Specifications Diameter Pass
10 mm
Specifications L2
63 mm
Specifications L3
19.0 mm
Specifications L4
80.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications P Thread Size
1/2
Specifications Tube Diameter
14.0 mm
