Heavy Duty Male Stud Non Return Valve NPT Taper with Equipped B3 Ring
Heavy Duty Male Stud Non Return Valve NPT Taper with Equipped B3 Ring
SKU:VAL-6835f6
High-pressure Male Stud Non Return Valve for hydraulic systems, durable Carbon Steel construction, 400 bar pressure.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve NPT Taper with Equipped B3 Ring
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve NPT Taper with Equipped B3 Ring
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with NPT Taper and Equipped B3 Ring is designed for high-pressure applications, with a Nominal Operating Pressure of 400 bar. Constructed from Carbon Steel, this valve ensures durability and reliability. Featuring precise dimensions including a 10.0mm Tube Diameter and 3/8 P - Thread Size, it meets stringent industrial standards for hydraulic systems.

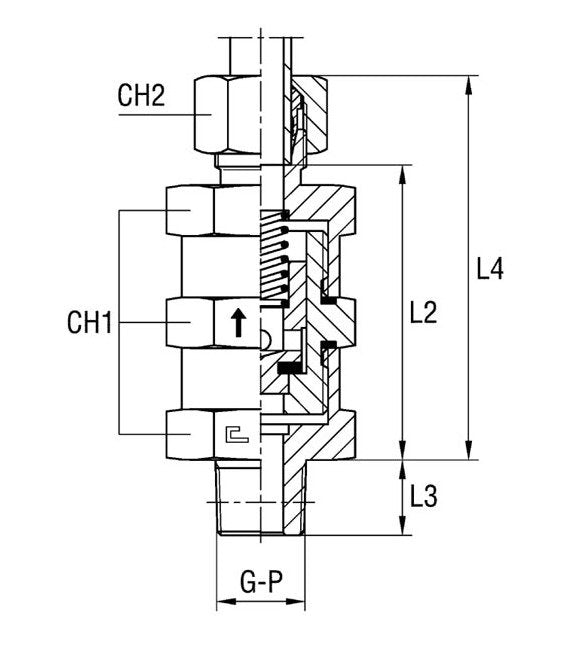

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications L2
58.5 mm
Specifications L3
15 mm
Specifications L4
74.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications P Thread Size
3/8
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Non Return Valve Thread NPT Taper
