Heavy Duty Male Stud Non Return Valve - Stainless Steel

Name: Heavy Duty Male Stud Non Return Valve - Stainless Steel
Brand: World Wide Metric, Inc.
SKU: VAL-a25526
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-a25526

High-pressure stainless steel non-return valve for hydraulic systems. Nominal pressure of 400 bar, ensuring reliability and efficiency.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Non Return Valve is designed for high-pressure applications, with a nominal operating pressure of 400 bar. Constructed with durable stainless steel, this valve ensures reliability and longevity. Featuring a G-Thread Size of 1/4 and a Tube Diameter of 8.0 mm, it is suitable for hydraulic systems that require precision and efficiency. The elastomer seal thread BSP parallel design enhances sealing performance, making it ideal for demanding industrial environments.

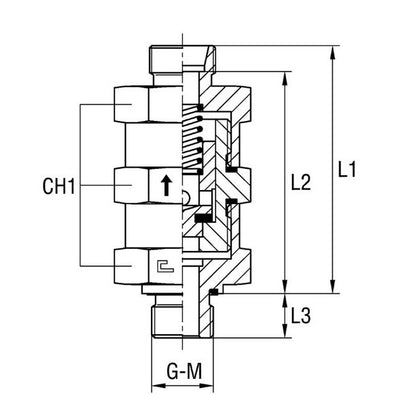

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications L1

62.0 mm

Specifications L2

55.0 mm

Specifications L3

12.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
