Heavy Duty Male Stud Non Return Valve - Stainless Steel

Name: Heavy Duty Male Stud Non Return Valve - Stainless Steel
Brand: World Wide Metric, Inc.
SKU: VAL-2f0b17
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-2f0b17

Heavy-duty hydraulic check valve for 250 bar pressure. Stainless steel construction. Precision-designed for reliability in hydraulic systems.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

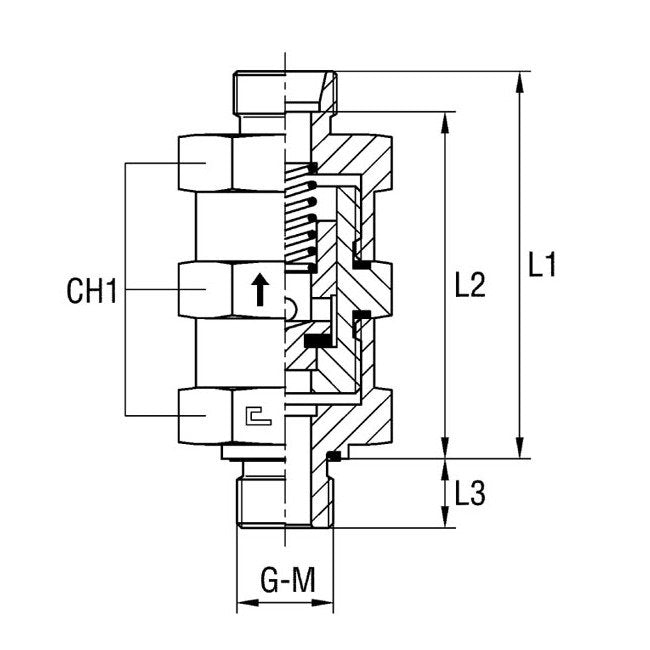

The Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Body Only is a heavy-duty hydraulic check valve designed for 250 bar nominal operating pressure. Crafted from durable stainless steel, this valve ensures reliable performance under high pressure. With a tube diameter of 38.0mm and M-Thread Size of 48x2, it offers precision and efficiency in hydraulic systems. The valve's compact design with precise measurements of L1: 109mm, L2: 93mm, and L3: 22.0mm, makes it ideal for diverse industrial applications. In addition, the Male Stud Non Return Valve features a Diameter Pass. of 29mm and CH1 dimension of 70mm, meeting stringent industry standards for quality and performance.

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

29 mm

Specifications L1

109 mm

Specifications L2

93 mm

Specifications L3

22.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

48x2

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Heavy Duty

Specifications Tube Diameter

38.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
