Heavy Duty Male Stud Non Return Valve - Stainless Steel Body
Heavy Duty Male Stud Non Return Valve - Stainless Steel Body
SKU:FIT-d9e92a
Highly durable Heavy Duty Male Stud Non Return Valve with stainless steel body for reliable high-pressure applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve - Stainless Steel Body
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve - Stainless Steel Body
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

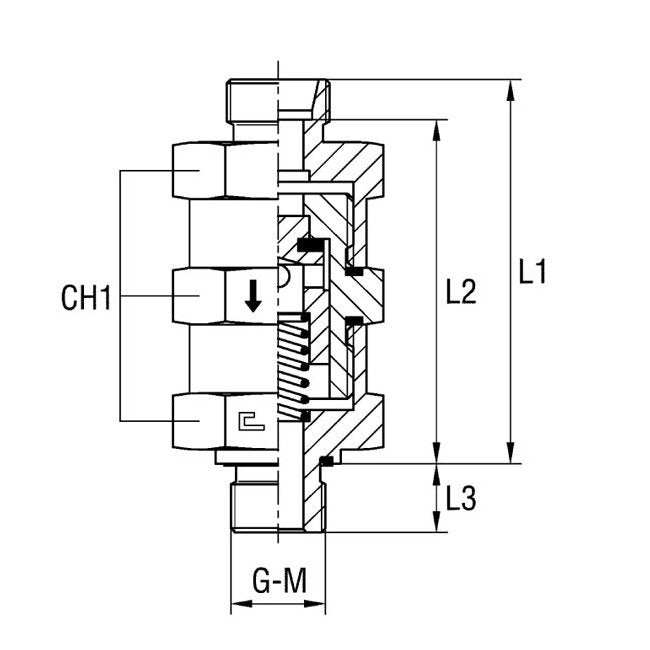

The Heavy Duty Male Stud Non Return Valve features a robust design suitable for high-pressure applications, with a nominal operating pressure of 250 bar. Crafted from stainless steel, this valve ensures durability and reliability. The elastomer seal provides a tight closure, preventing backflow efficiently. With a tube diameter of 38.0mm and M-thread size of 48x2, this valve is engineered for performance and longevity.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications L1
109 mm
Specifications L2
93 mm
Specifications L3
22.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
38.0 mm
