Heavy Duty Male Stud Non Return Valve - Stainless Steel, Metric Parallel
Heavy Duty Male Stud Non Return Valve - Stainless Steel, Metric Parallel
SKU:FIT-a447a9
Premium Stainless Steel Non Return Valve for Hydraulic Systems
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve - Stainless Steel, Metric Parallel
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve - Stainless Steel, Metric Parallel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from high-quality stainless steel, this valve ensures durability and reliability. With a tube diameter of 10.0 mm and precise dimensions, it guarantees a secure fit and optimal performance. The elastomer seal provides a tight closure, preventing backflow and maintaining system efficiency. Ideal for hydraulic systems requiring precision and robustness.
Ready to Grow Without Cash Flow Constraints?

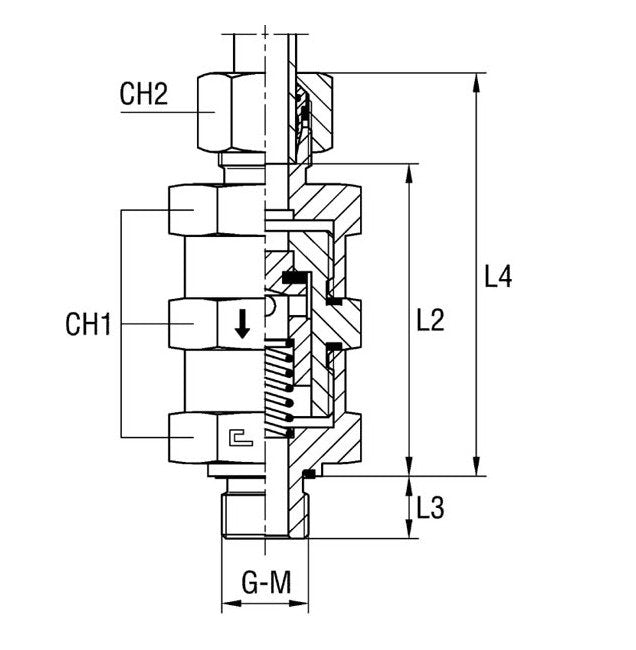

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications L4
77 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
