Heavy Duty Male Stud Non Return Valve - Stainless Steel, NPT Taper
Heavy Duty Male Stud Non Return Valve - Stainless Steel, NPT Taper
SKU:FIT-828ffb
Reliable heavy-duty Male Stud Non Return Valve with 400 bar nominal operating pressure and NPT Taper threading for efficient hydraulic flow control.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve - Stainless Steel, NPT Taper
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve - Stainless Steel, NPT Taper
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve is a heavy-duty component designed for reliable hydraulic applications. With a nominal operating pressure of 400 bar, this valve features a tube diameter of 10.0mm, ensuring efficient flow control. Crafted from stainless steel, it offers durability and corrosion resistance. The NPT Taper threading enhances compatibility and ease of installation. Stay compliant with industry standards and benefit from seamless performance with this precision-engineered valve.

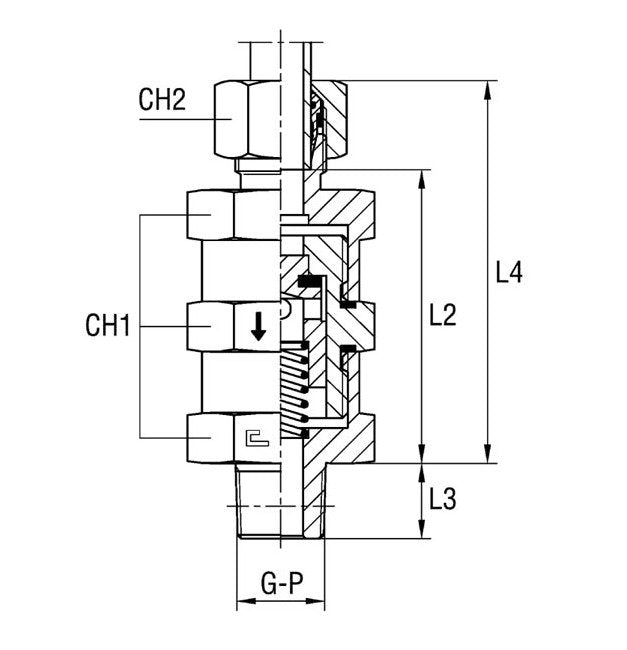

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications L2
58.5 mm
Specifications L3
15 mm
Specifications L4
74.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications P Thread Size
3/8
Specifications Tube Diameter
10.0 mm
