Heavy Duty Male Stud Non Return Valve with BSP Taper & B4 Ring - Stainless Steel
Heavy Duty Male Stud Non Return Valve with BSP Taper & B4 Ring - Stainless Steel
SKU:VAL-369311
High-performance Male Stud Non Return Valve with BSP Taper for heavy-duty hydraulic applications, meets Federal procurement standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve with BSP Taper & B4 Ring - Stainless Steel
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve with BSP Taper & B4 Ring - Stainless Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve is designed to withstand pressures up to 400 bar, making it ideal for demanding hydraulic applications. With a tube diameter of 16.0 mm and G-Thread size of 1/2, this valve ensures precise and efficient flow control. Crafted from durable stainless steel, it offers exceptional longevity and corrosion resistance. The inclusion of the B4 Ring further enhances its sealing performance, ensuring reliable operation in critical environments. This valve is compliant with Federal procurement standards and industry-specific certifications, making it a trusted choice for institutional buyers seeking top-quality hydraulic components.

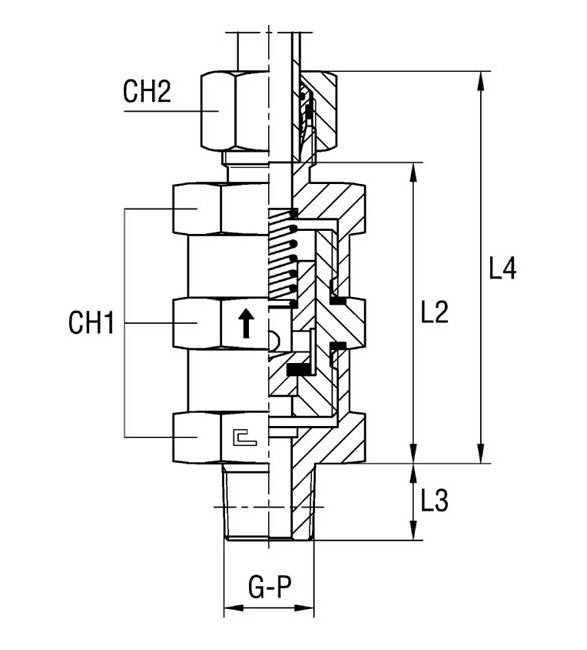

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
30 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L2
62.5 mm
Specifications L3
19.0 mm
Specifications L4
80.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
