Heavy Duty Male Stud Non Return Valve with Elastomer Seal
Heavy Duty Male Stud Non Return Valve with Elastomer Seal
SKU:FIT-3c433a
Reliable heavy-duty hydraulic valve for high-pressure systems, meets industry standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve with Elastomer Seal
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve with Elastomer Seal
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

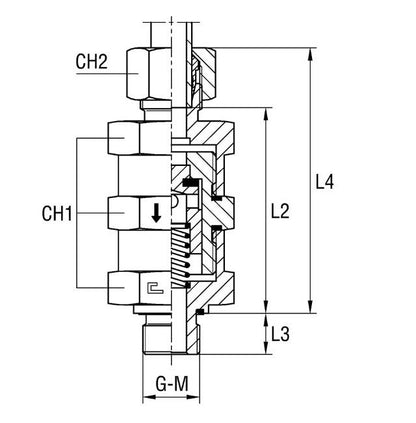

The Heavy Duty Male Stud Non Return Valve with Elastomer Seal ensures reliable performance in high-pressure hydraulic systems with a nominal operating pressure of 400 bar. Crafted from stainless steel, this valve features a precise design with a 3/8 G-thread size and a 7mm diameter pass. Its compact dimensions of L2: 61mm, L3: 12.0mm, L4: 77mm make it suitable for various applications. With CH1: 32mm and CH2: 22mm clearance heights, this valve provides efficient fluid control while meeting stringent industry standards.
Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications G Thread Size
3/8
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications L4
77 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
