Heavy Duty Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Heavy Duty Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
SKU:FIT-a3c24a
Premium Heavy Duty Non Return Valve for high-pressure hydraulic systems. Durable carbon steel construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with Elastomer Seal is designed to withstand pressure levels up to 400 bar. Crafted from durable carbon steel, it ensures reliable performance in hydraulic systems. With a tube diameter of 12.0 mm and precise specifications, this valve is ideal for applications requiring secure fluid control. Meet stringent procurement standards with this top-notch valve.

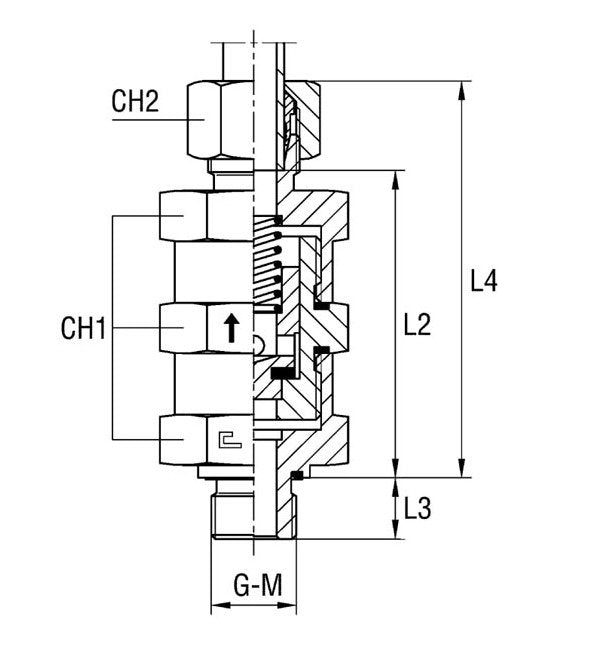

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
24 mm
Specifications Diameter Pass
8 mm
Specifications G Thread Size
3/8
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications L4
77 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
12.0 mm
