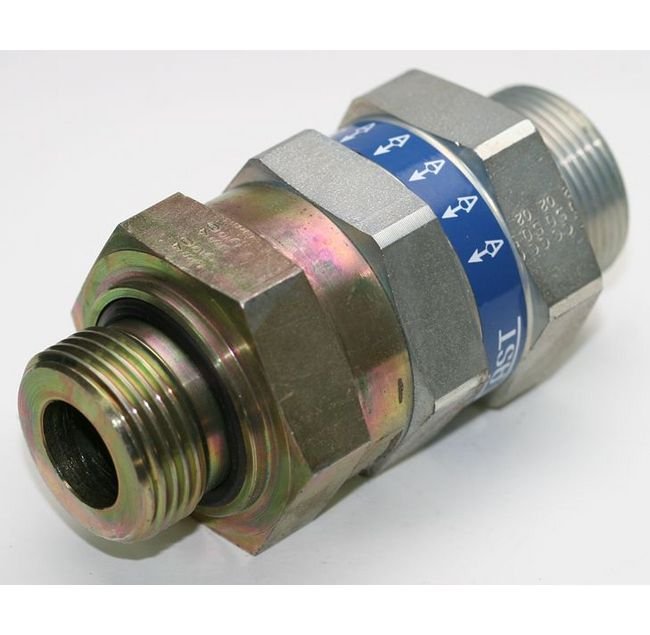

Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
SKU:VAL-01d4c2
Heavy Duty Non Return Valve for high-pressure hydraulic systems, carbon steel construction, complies with federal standards
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with Elastomer Seal ensures reliable performance in high-pressure hydraulic systems with a nominal operating pressure of 400 bar. Made of durable carbon steel, this valve features precise dimensions including a 10.0mm tube diameter and 3/8" G-Thread size. With a compact design and 7mm diameter pass, it is ideal for hydraulic applications requiring secure flow control. This valve is compliant with federal procurement standards and industry-specific certifications, making it a dependable choice for institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
7 mm
Specifications G Thread Size
3/8
Specifications L1
68.5 mm
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
