Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Body Only
Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Body Only
SKU:FIT-a25526
High-pressure Male Stud Non Return Valve with Elastomer Seal for hydraulic applications. Nominal Operating Pressure: 400 bar.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Body Only
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Body Only
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with Elastomer Seal is designed for high-pressure applications, with a Nominal Operating Pressure of 400 bar. Crafted from Stainless Steel, this valve ensures durability and reliable performance. Featuring a G-Thread Size of 1/4 and a Tube Diameter of 8.0mm, it meets stringent industry standards for hydraulic systems.

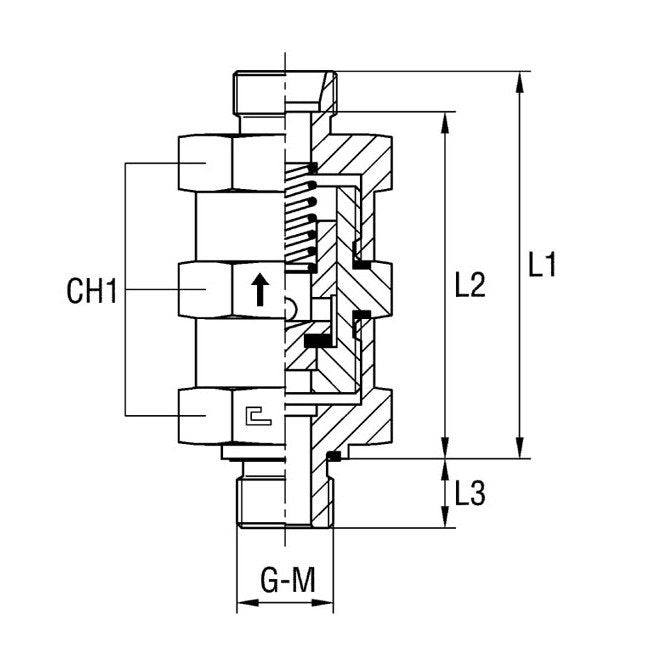

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L1
62.0 mm
Specifications L2
55.0 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
8.0 mm
