Heavy Duty Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Heavy Duty Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:VAL-d27e42
Reliable Heavy Duty Hydraulic Check Valve with Carbon Steel Construction. Nominal Pressure: 400 bar. Perfect for High-Pressure Applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a robust hydraulic check valve designed for high-pressure applications, with a nominal operating pressure of 400 bar. Crafted from carbon steel, this valve ensures reliable performance and longevity. Its precision engineering guarantees a tight seal, enhancing operational efficiency and safety. Ideal for industrial settings requiring superior durability and performance.
Ready to Grow Without Cash Flow Constraints?

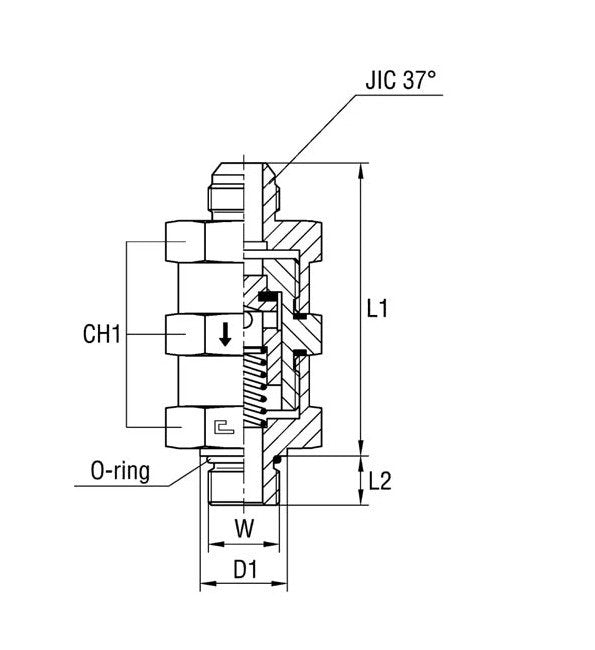

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1/2-20
Specifications W Tube Diameter
5/16 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
