Heavy Duty Male Stud Non Return Valve with O-Ring Thread UNF/UN-2A
Heavy Duty Male Stud Non Return Valve with O-Ring Thread UNF/UN-2A
SKU:FIT-4d17a1
Ensure reliable flow control with our Heavy Duty Male Stud Non Return Valve - perfect for extra heavy-duty use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Non Return Valve with O-Ring Thread UNF/UN-2A
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Non Return Valve with O-Ring Thread UNF/UN-2A
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Male Stud Non Return Valve with O-Ring Thread UNF/UN-2A is a high-quality hydraulic check valve designed for durability and reliable performance. With a nominal operating pressure of 350 bar, this valve ensures secure flow control. Constructed from carbon steel, it guarantees strength and longevity. The valve features precise dimensions including M and W tube diameters, making it suitable for various hydraulic systems. Ideal for extra heavy-duty applications, this valve is a robust and essential component for hydraulic setups.

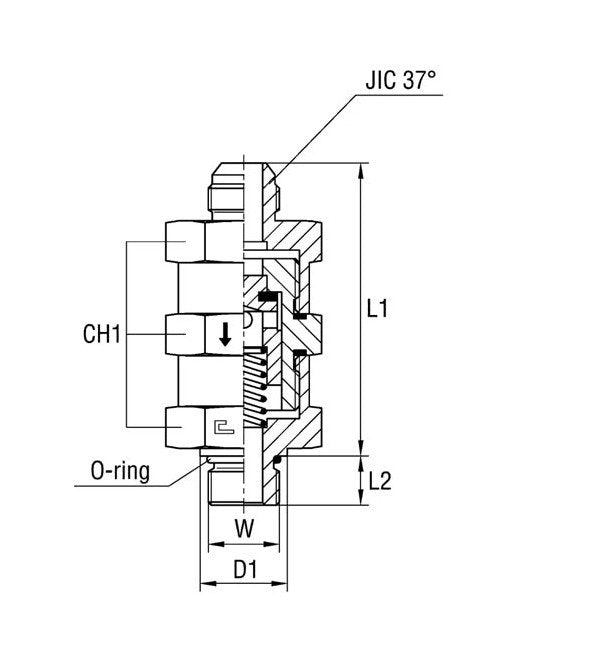

Product Specifications
Specifications Ch1
50 mm
Specifications D1
31.8 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
87.9 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 1/16-12
Specifications W Tube Diameter
3/4 in
