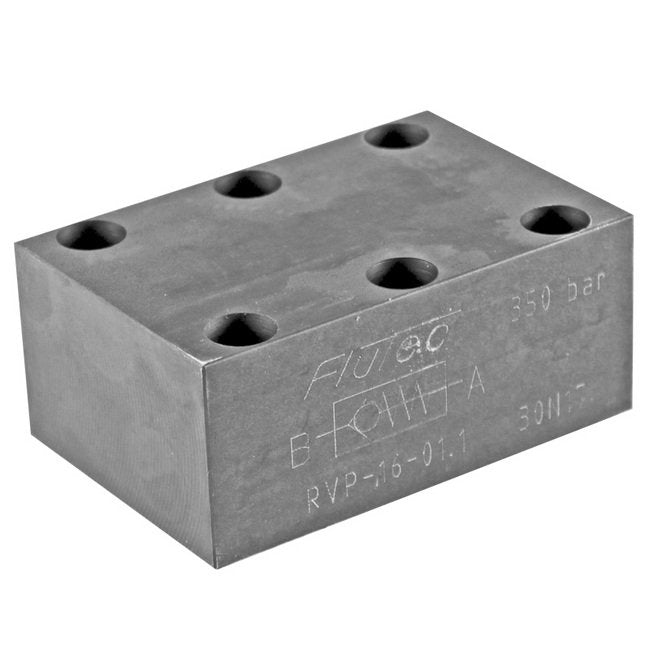

Heavy-Duty Manifold Mounting Check Valves

Heavy-Duty Manifold Mounting Check Valves

ACC-ad81d0

Durable Carbon Steel Manifold Check Valve for precise flow control. Ideal for industrial settings.

$49.99
$49.99
Sale

Initiate Order

Heavy-Duty Manifold Mounting Check Valves

Heavy-Duty Manifold Mounting Check Valves

$49.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Manifold Mounting Check Valves

Heavy-Duty Manifold Mounting Check Valves

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy-Duty Manifold Mounting Check Valves are designed for precise flow control in industrial settings. Made of Carbon Steel, these valves ensure durability and reliability. Featuring a metal-to-metal seal design and a hardened steel poppet, they offer exceptional performance under high pressure. With a maximum operating pressure of 5000 psi, these valves are ideal for a wide range of applications. Please note, these valves are not suitable for high-cycle applications.

Product Specifications

Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
0.6 bar | 8 psi
Specifications Dimension L
5.24 in | 133 mm
Specifications Division
ACCESSORIES
Specifications Housing Material
Carbon Steel
Specifications Kinematic Viscosity At 86 F30 C
335 SUS
Specifications Model Code Description
RVP-20-01.X
Specifications Mounting Type
Manifold Mounting
Specifications Nominal Sizes
20
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Short Description
RVP Check valves
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.1 kg | 0.22 lb
