Heavy Duty Material Handling Electromagnet
Heavy Duty Material Handling Electromagnet
SKU:MHE-484f2f
Versatile Heavy Duty Electromagnet for efficient medium gauge metal handling. Up to 5500 lb capacity with optional DC voltage.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Heavy Duty Material Handling Electromagnet
$1,599.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Material Handling Electromagnet
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

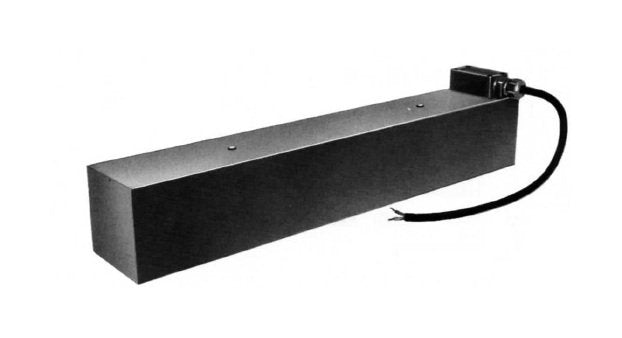

The Heavy Duty Material Handling Electromagnet is designed for lifting single or multiple sheets of medium gauge metal with ease and precision. Featuring a 3 pole design for maximum holding power, this electromagnet is ideal for stacking and de-stacking applications. With a capacity of up to 5500 lb and optional DC voltage ratings, it offers versatility and efficiency in material handling operations. Constructed with heavy-duty materials, mounting holes, and replaceable parts, it ensures durability and long-lasting performance.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
5500 lb

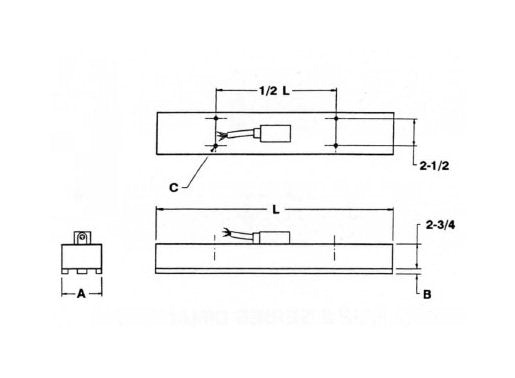

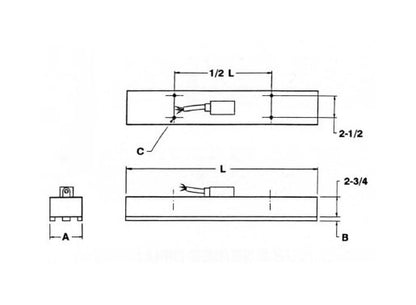

Specifications Dimension A
4 1/2 in
Specifications Dimension B
.750 in
Specifications Dimension C
1/2-13
Specifications Dimension L
36 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
212 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
90 lb
