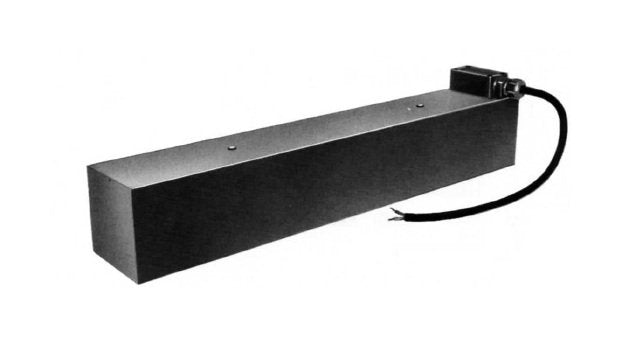

Heavy-Duty Material Handling Electromagnet
Heavy-Duty Material Handling Electromagnet
SKU:MHE-ff8810
Upgrade your material handling with our reliable Heavy-Duty Electromagnet. Ideal for lifting medium gauge sheet metal and plate, featuring 3-pole design for superior power.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Heavy-Duty Material Handling Electromagnet
$899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Material Handling Electromagnet
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your material handling efficiency with our Heavy-Duty Material Handling Electromagnet. Designed for medium gauge sheet metal and plate lifting, this electromagnet features a 3-pole design for enhanced holding power. Including mounting holes, replaceable Pole Shoes, and stainless steel coil covers, it ensures durability. With capacities up to 1800 lbs and options for 110V or 220V DC voltages, this electromagnet is suitable for manual or automated operations, meeting rigorous industry standards.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
1800 lb

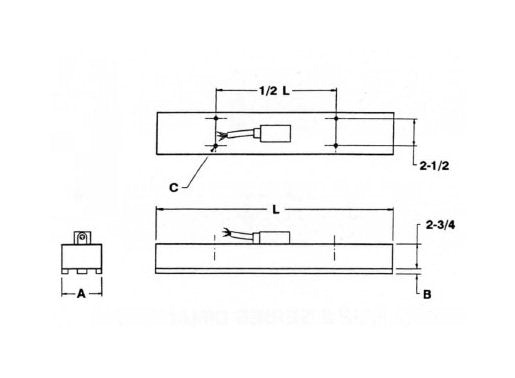

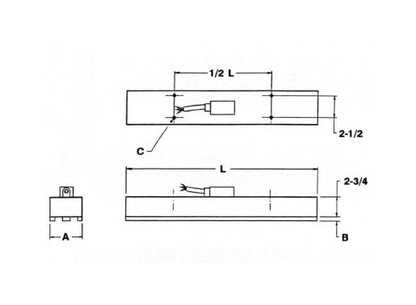

Specifications Dimension A
4 1/4 in
Specifications Dimension B
.500 in
Specifications Dimension C
3/8-16
Specifications Dimension L
12 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
71 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
28 lb
