Heavy Duty Material Handling Electromagnet
Heavy Duty Material Handling Electromagnet
SKU:MHE-0c131f
Experience precision lifting with our Heavy Duty Material Handling Electromagnet, designed for efficiency and durability.
Regular price
$1,349.99
Regular price
Sale price
$1,349.99
Unit price
per
Initiate Order
Heavy Duty Material Handling Electromagnet
$1,349.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Material Handling Electromagnet
$1,349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

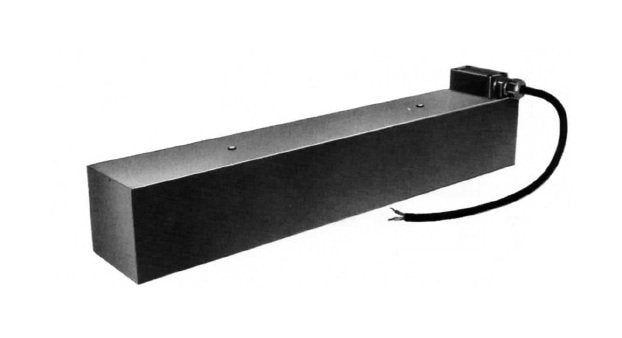

The Heavy Duty Material Handling Electromagnet (MHE) is engineered for precision lifting applications in both medium gauge sheet metal and plate handling. Featuring a robust 3-pole design, this electromagnet delivers exceptional surface area coverage and holding power across its entire length, making it ideal for efficiently lifting layers of rods, bars, or plates with ease. Each unit is constructed with heavy-duty materials, mounting holes, replaceable Pole Shoes, and stainless steel coil covers for durability. Compatible with both manual and automated rectifier-controllers, the MHE Electromagnet ensures reliable performance in various operational environments.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.

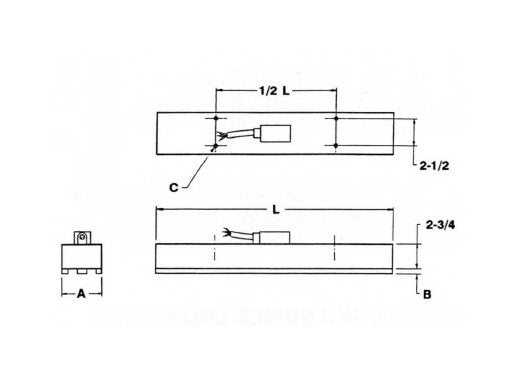

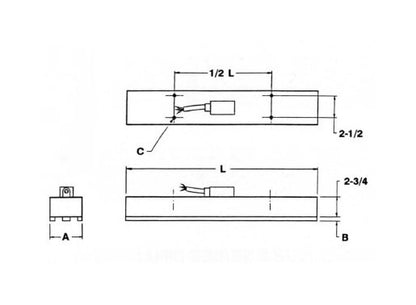

Specifications Capacity
2300 lb
Specifications Dimension A
4 1/4 in
Specifications Dimension B
.500 in
Specifications Dimension C
3/8-16
Specifications Dimension L
16 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
97 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
37 lb
